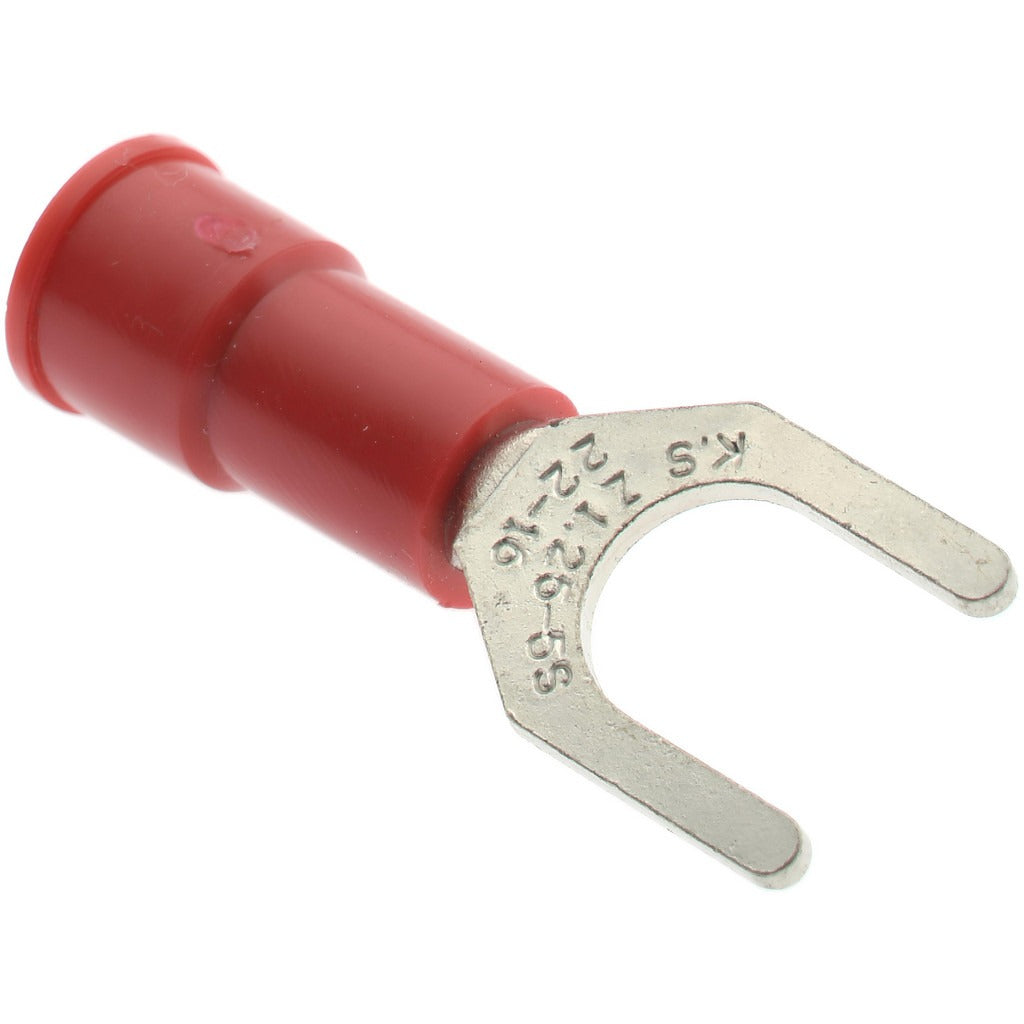

Value Collection ZSVYS1-5 Fork Terminal 10 Stud 600V

Product Description

The VALUE COLLECTION ZSVYS1-5 is a standard fork terminal designed for secure, reliable wire termination in low-voltage electrical assemblies. Partially insulated with a red vinyl sleeve, it accepts wire sizes from 0.50 to 1.50 square millimeters and is rated for 600 volts. The copper contact construction provides solid conductivity at the termination point. This terminal is installed by electricians and electrical technicians in panel wiring, control circuits, and field wiring applications where a spade-style mechanical connection to a stud or screw is required.

This fork terminal is suited for residential and light commercial electrical work, control panel assembly, and HVAC low-voltage wiring applications. The 10 stud size and 5.30 mm stud hole accommodate standard machine screws in terminal blocks, junction boxes, and equipment enclosures. Its compact overall length of 0.89 inches makes it a practical choice in space-constrained termination areas. The red color coding supports quick identification of wire gauge groupings during installation and inspection.

Key Features

• Partially insulated red vinyl sleeve for wire gauge identification and finger protection
• Copper contact material for reliable electrical conductivity
• Rated 600 volts for use in standard low-voltage control and power circuits
• Compatible with wire sizes from 0.50 to 1.50 sq mm
• Fork width of 0.319 inches (8.10 mm) fits 10 stud and 5.30 mm stud hardware
• Overall length of 0.89 inches (22.60 mm) suits tight panel layouts

Compatibility

Designed as an OEM-style replacement or new-installation fork terminal for use with 10 stud hardware and wire gauges in the 0.50 to 1.50 sq mm range in standard electrical and control wiring applications.

Installation Notes

Electricians and control panel assemblers install fork terminals using a calibrated crimping tool sized for the terminal barrel and wire gauge. Disconnect and lock out all power to the circuit before terminating or inspecting connections. Do not exceed the 600-volt rating of the terminal. Confirm stud size compatibility before installation, and ensure the crimp is inspected for full wire insertion and secure barrel deformation per applicable NEC requirements.
