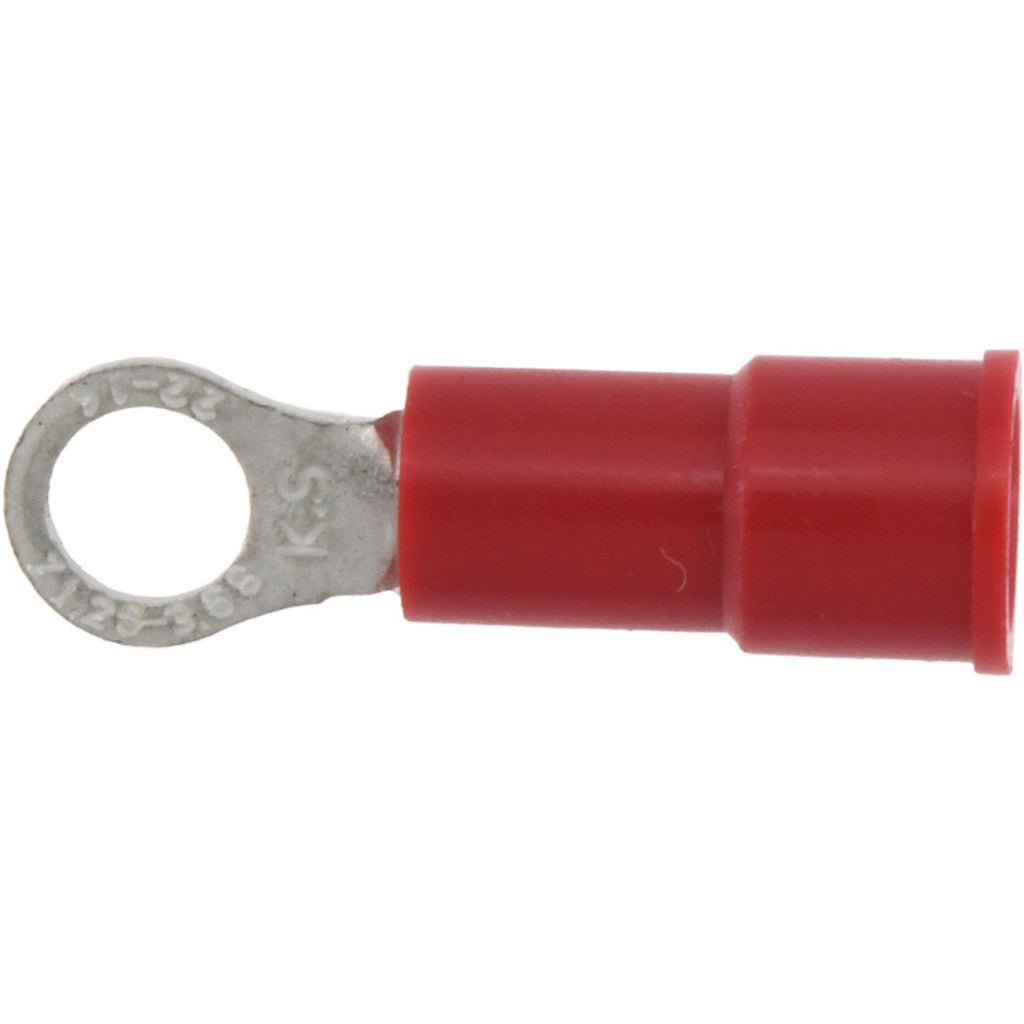

Value Collection ZRVYS1-3.7 Ring Terminal 22-16 Awg

Product Description

The VALUE COLLECTION ZRVYS1-3.7 is a partially insulated circular ring terminal designed for crimp-style electrical connections in light-gauge wire applications. It accepts wire sizes from 22 to 16 AWG (0.50 to 1.50 sq mm) and fits a No. 6 stud (3.70 mm). The vinyl insulation sleeve provides basic mechanical and electrical protection at the connection point. With a copper contact construction, the terminal delivers reliable conductivity in control wiring, appliance wiring, and low-voltage circuit terminations. Electricians and electronics technicians use this terminal type when a secure, compact ring connection is required at a screw or stud fastener.

This terminal is suited for residential and light commercial electrical work, control panel wiring, HVAC low-voltage wiring harnesses, and appliance or equipment repair. The No. 6 stud size makes it compatible with a wide range of small screw terminals found on control boards, relays, and terminal blocks. The red color coding identifies it as the correct gauge range for 22 to 16 AWG wire, following standard industry color conventions for insulated crimp terminals.

Key Features

• Accepts 22 to 16 AWG wire (0.50 to 1.50 sq mm) for light-gauge control and appliance circuits
• No. 6 stud size (3.70 mm) fits a broad range of small screw terminals and terminal blocks
• Copper contact material provides solid electrical conductivity at the crimp joint
• Vinyl partial insulation sleeve protects the barrel and transition zone from abrasion and short circuit
• Red color coding identifies the 22 to 16 AWG gauge range per standard crimp terminal conventions
• Overall length of 0.831 inches and ring width of 0.217 inches for use in tight panel spaces

Compatibility

Designed as a standard crimp ring terminal for 22 to 16 AWG copper wire applications where a No. 6 stud connection is required, including control wiring, HVAC low-voltage circuits, and general electrical panel work.

Installation Notes

Installation is performed by licensed electricians or qualified technicians using a ratcheting or calibrated crimp tool rated for insulated terminals in the 22 to 16 AWG range. De-energize the circuit before terminating any wires. Strip wire insulation to the length recommended by the terminal manufacturer before inserting into the barrel, and confirm a complete crimp before applying load. NEC guidelines govern the use of crimp terminals in permanent wiring installations.
