Value Collection ZRNL2-4 Ring Terminal 16-14 Awg Crimp

Product Description

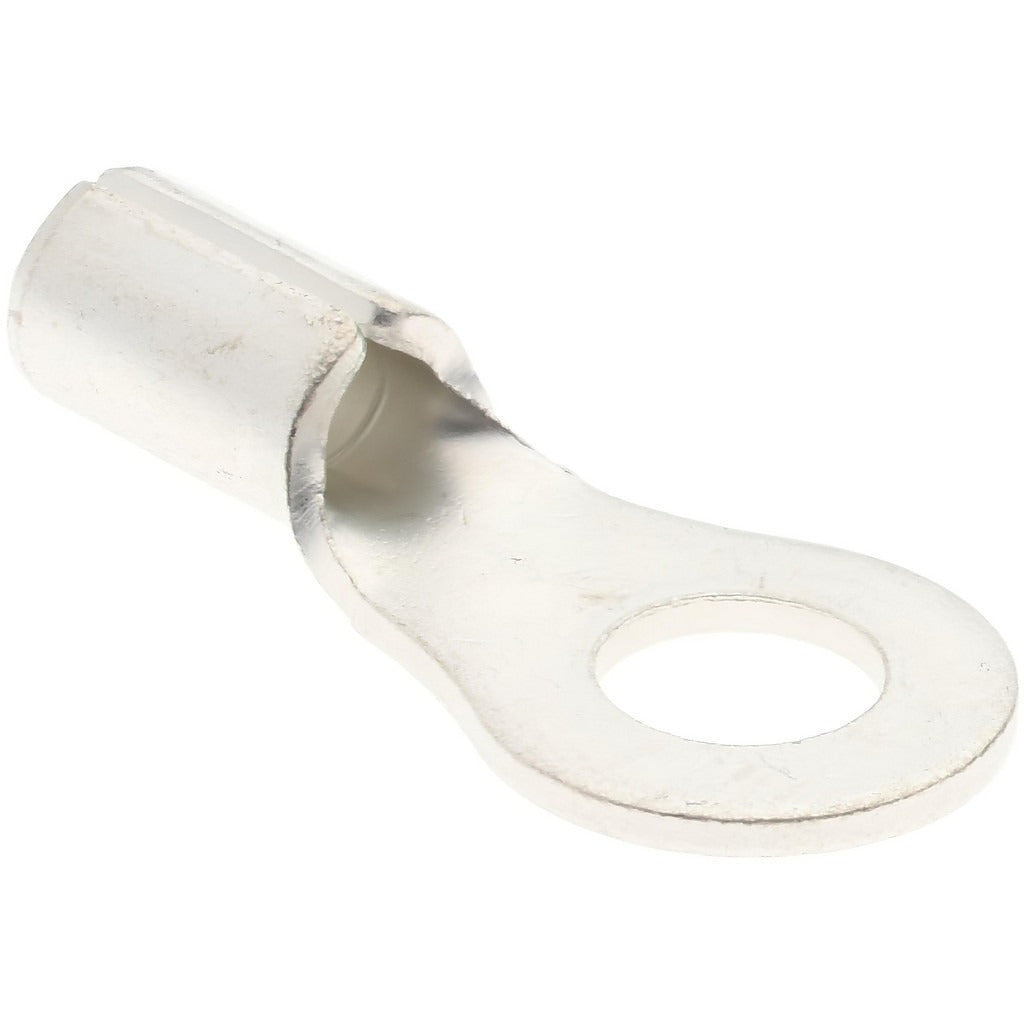

The VALUE COLLECTION ZRNL2-4 is a non-insulated circular ring terminal designed for crimp connections on copper conductors ranging from 16 to 14 AWG. The terminal accepts a size 8 stud and measures 0.709 inches in overall length with a ring width of 0.335 inches and a contact thickness of 0.031 inches. Constructed from copper contact material, this terminal provides reliable electrical conductivity in low-voltage wiring applications. It is well suited for use in control panel wiring, equipment grounding, and branch circuit terminations where a secure, permanent mechanical and electrical connection is required by licensed electricians and experienced technicians.

This ring terminal is appropriate for residential and light commercial electrical work, HVAC control wiring, panel assembly, and general equipment hookup. The crimp connection style is compatible with standard ratcheting crimp tools and is commonly used in situations where vibration resistance and consistent contact integrity are priorities. The non-insulated design allows for inspection of the crimp joint after termination and is suitable for use with separate insulating sleeves or heat-shrink tubing where required by code or application.

Key Features

• Non-insulated circular ring terminal for post-crimp inspection of the connection
• Accepts 16 to 14 AWG wire (1.50 to 2.50 sq mm)
• Size 8 stud hole with a stud diameter of 4.30 mm
• Copper contact material for reliable electrical conductivity
• Overall length of 0.709 inches and ring width of 0.335 inches
• Contact thickness of 0.031 inches for consistent crimp performance

Compatibility

Designed as an OEM-style replacement or standard-service ring terminal for use with 16 to 14 AWG copper conductors and size 8 stud fasteners in general electrical, HVAC control, and equipment wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or trained technician in accordance with NEC guidelines. De-energize and lock out the circuit before terminating or replacing any ring terminal. Use a calibrated ratcheting crimp tool rated for the wire gauge being terminated to ensure a secure, gas-tight connection. Do not re-crimp a terminal that has already been crimped onto a conductor.
