Value Collection ZMSCVB75113 O-ring Dash 113 Viton 100-pack

Product Description

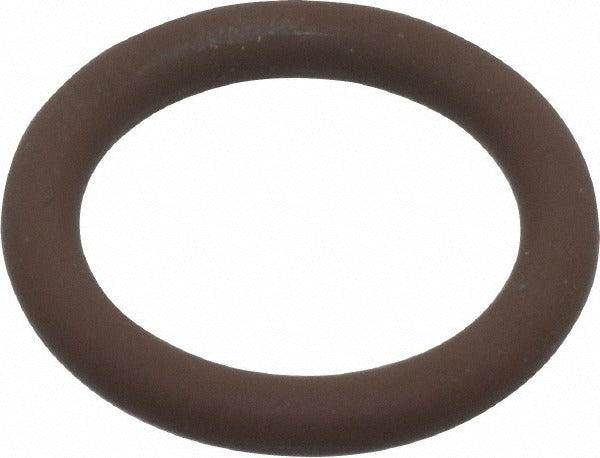

The VALUE COLLECTION ZMSCVB75113 is a Dash 113 Viton fluoroelastomer O-ring designed for static and dynamic sealing applications across HVAC, plumbing, hydraulic, and industrial fluid systems. It measures 0.563 inches inside diameter, 0.75 inches outside diameter, and 0.094 inches thick, with a round cross section. The fluoroelastomer compound delivers a durometer hardness of 75 Shore A, giving the ring a hard rating suited for high-pressure and high-temperature service. The rated operating range spans -15 degrees F to 400 degrees F. Each order ships in a pack of 100 rings, making it practical for shop stock, service van inventory, or production assembly.

This O-ring fits applications where petroleum-based fluids, fuels, oils, hydraulic fluids, or similar media are present. The fluoroelastomer material resists chemical degradation across a wide spectrum of hydrocarbons and process fluids. It is also rated for vacuum service and exhibits low gas permeability, making it viable in refrigerant-side joints, vacuum pump assemblies, and low-bleed gas fittings. HVAC technicians, plumbers, hydraulic system mechanics, and industrial maintenance technicians are the primary installers. The 100-piece pack supports both single-job use and ongoing preventive maintenance programs.

Key Features

• Fluoroelastomer (Viton-type) compound with good resistance to petroleum products and a wide range of chemicals
• Operating temperature range of -15 degrees F to 400 degrees F for high-heat service environments
• 75 Shore A durometer hardness rating, providing low compression set under sustained load
• Suitable for vacuum service with low gas permeability
• Round cross section in Dash 113 standard sizing for drop-in replacement across compatible grooves
• Pack of 100 rings for shop stock or production use

Compatibility

Designed for use in any application requiring a Dash 113 standard O-ring groove. Compatible with petroleum products, hydraulic oils, fuels, and similar hydrocarbon-based media. Not FDA approved; not intended for food-contact or potable-water applications.

Installation Notes

Installation should be performed by a qualified technician familiar with the system being serviced. Depressurize and isolate the system before removing any fittings or seals. Inspect the groove and mating surfaces for nicks, burrs, or corrosion before installing the new ring. Apply a compatible lubricant approved for use with fluoroelastomer compounds to ease installation and reduce the risk of twisting or rolling the seal during assembly.
