Value Collection ZMSCVB75110 Viton O-ring Dash 110

Product Description

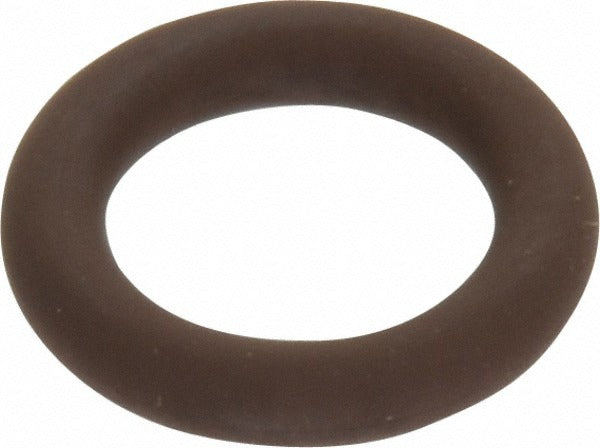

The VALUE COLLECTION ZMSCVB75110 is a Dash 110 Viton (fluoroelastomer) O-ring designed for static and dynamic sealing applications where high temperatures and petroleum-based fluid exposure are a concern. It measures 0.375 inches inside diameter, 0.563 inches outside diameter, and 0.094 inches thick, with a round cross section. Rated for service from -15 degrees F to 400 degrees F, this O-ring carries a Shore A hardness of 75 and is well suited for vacuum service applications. The fluoroelastomer compound provides low compression set and low gas permeability across a wide chemical range.

This O-ring is used in HVAC, plumbing, hydraulic, and industrial fluid systems where resistance to petroleum products, fuels, oils, and elevated heat is required. Typical applications include refrigerant service fittings, hydraulic cylinder seals, pump housings, valve stems, and fuel system connections. The Dash 110 sizing is a standard AS568 designation, making it a drop-in fit for any application specifying that dash number. It is sold in a package quantity of 100 units.

Key Features

• Fluoroelastomer (Viton) compound rated from -15 degrees F to 400 degrees F
• Shore A hardness of 75 with a hard hardness rating for reliable seating under compression
• Low compression set and low gas permeability suitable for vacuum service
• Good resistance to petroleum products, fuels, and a wide spectrum of chemicals
• Round cross section, Dash 110 per AS568 standard sizing
• Package quantity of 100 units with a minimum order quantity of 1

Compatibility

Compatible with petroleum products and applications requiring resistance to fuels, oils, and high-temperature fluids. Designed as a standard Dash 110 O-ring replacement for any system or fitting calling out that AS568 dash designation.

Installation Notes

O-ring installation should be performed by a qualified technician. Always depressurize and de-energize the system before removing or replacing seals. Inspect the groove and mating surfaces for damage, burrs, or contamination before installation. Apply a compatible lubricant to ease seating and prevent tearing during assembly; do not use lubricants incompatible with fluoroelastomer compounds.
