Value Collection ZMSCVB75032 Viton O-ring Dash 032 25-pack

Product Description

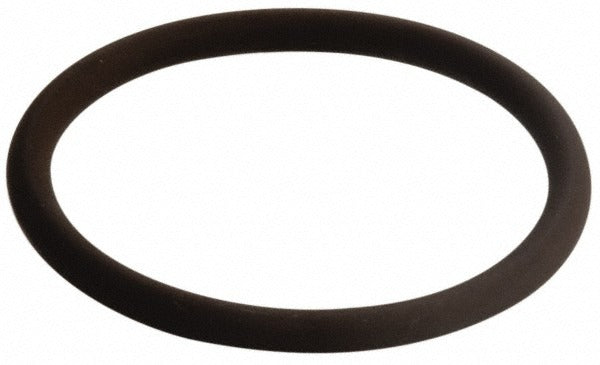

The VALUE COLLECTION ZMSCVB75032 is a Dash 032 Viton (fluoroelastomer) O-ring sold in a pack of 25. It measures 1.875 inches inside diameter, 2 inches outside diameter, and 0.0625 inches thick with a round cross section. Rated for service from -15 degrees F to 400 degrees F, this O-ring is designed for demanding sealing applications where heat resistance, low compression set, and broad chemical compatibility are required. HVAC technicians, plumbers, and industrial service professionals install this type of seal in fluid and gas systems handling petroleum-based media.

This O-ring is suited for residential and commercial applications involving petroleum products, hydraulic fluids, and similar media. Its fluoroelastomer construction gives it low gas permeability, making it appropriate for vacuum service as well as pressurized systems. The Dash 032 size is a widely used standard dimension, fitting sealing grooves machined to AS568 Dash 032 specifications. Typical installation scenarios include pump seals, valve bodies, fittings, and refrigeration or HVAC service connections where high-temperature stability is critical.

Key Features

• Fluoroelastomer (Viton) material — rated -15 degrees F to 400 degrees F continuous service
• Shore A hardness of 75 (Hard rating) — low compression set under sustained load
• Good resistance to petroleum products and a wide spectrum of chemicals
• Low gas permeability — suitable for vacuum service applications
• Round cross section, Dash 032 standard dimensions — 1.875 inches ID, 2 inches OD, 0.0625 inches thick
• Pack of 25 units per package, minimum order quantity of 1 package

Compatibility

Designed for use in systems handling petroleum products and chemically aggressive media. Compatible material group includes petroleum-based fluids. Fits standard AS568 Dash 032 O-ring grooves. Not FDA approved — not intended for food, beverage, or pharmaceutical contact applications.

Installation Notes

Installation should be performed by a licensed technician familiar with the system being serviced. Always depressurize and de-energize the system before replacing O-ring seals. Lubricate the O-ring with a compatible grease or fluid before seating to prevent tearing during assembly. Inspect the groove and mating surfaces for nicks or burrs that could compromise the seal.
