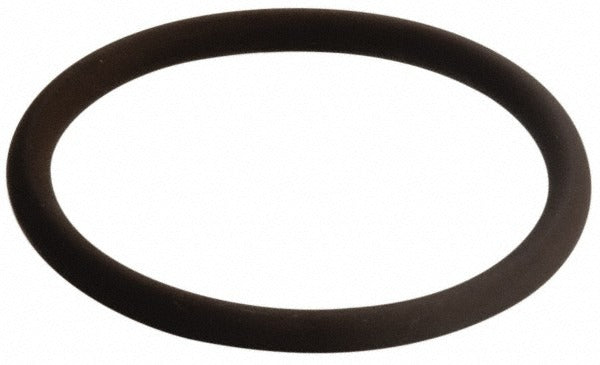

Value Collection ZMSCVB75010 Viton O-ring Dash 010

Product Description

The VALUE COLLECTION ZMSCVB75010 is a Dash 010 Viton O-ring manufactured from fluoroelastomer, a synthetic rubber compound engineered for demanding sealing applications. With an inside diameter of 0.25 inches, an outside diameter of 0.375 inches, and a cross-section thickness of 0.0625 inches, this round-profile O-ring delivers a reliable static or dynamic seal across a broad operating temperature range of -15 degrees F to 400 degrees F. The 75 Shore A hardness rating classifies this as a hard compound, providing low compression set and excellent resistance to heat and chemical exposure. Sold in packages of 100.

This O-ring is suited for use in HVAC, plumbing, hydraulic, pneumatic, and general industrial sealing applications where contact with petroleum-based fluids, fuels, oils, or high-temperature media is expected. The fluoroelastomer compound provides wide-spectrum chemical compatibility and low gas permeability, making it appropriate for vacuum service and sealed refrigerant or fuel-system connections. Licensed HVAC technicians, plumbers, and industrial maintenance professionals typically install this size in fittings, valves, pumps, and manifold assemblies.

Key Features

• Fluoroelastomer (Viton-type) compound rated for continuous service from -15 degrees F to 400 degrees F
• Dash 010 standard sizing: 0.25 inches ID, 0.375 inches OD, 0.0625 inches cross-section thickness
• 75 Shore A hardness — low compression set for long-term seal integrity
• Good resistance to petroleum products, fuels, and a wide spectrum of chemicals
• Low gas permeability — suitable for vacuum service and sealed-system applications
• Round cross-section profile for use in standard O-ring grooves

Compatibility

Designed as a standard Dash 010 O-ring for use in any application requiring a 0.25 inches ID fluoroelastomer seal, including fittings, valves, and assemblies that contact petroleum products or high-temperature media.

Installation Notes

Shut off fluid or gas supply and relieve system pressure before removing or replacing any O-ring seal. Inspect the mating groove for burrs, scoring, or debris before installing the new O-ring. Apply a compatible lubricant to the O-ring during installation to prevent twisting or tearing; ensure the lubricant is compatible with fluoroelastomer and the process fluid. Follow applicable system codes and manufacturer torque specifications for the fitting or assembly being serviced.
