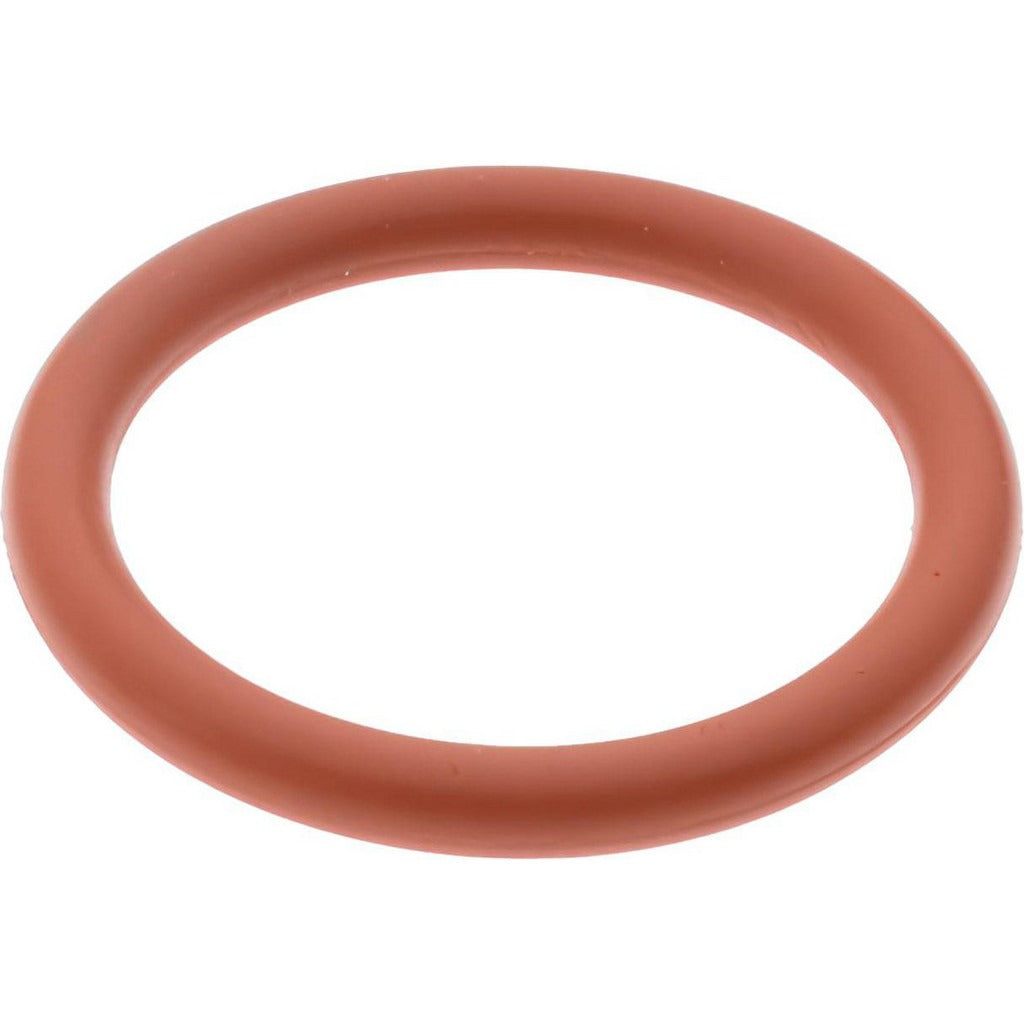

Value Collection ZMSCS70116 Silicone O-ring Dash 116 100pk

Product Description

The VALUE COLLECTION ZMSCS70116 is a silicone O-ring with a round cross section, designed for static and dynamic sealing applications across a wide temperature range. With a 0.75 inch inside diameter, 0.938 inch outside diameter, and 0.094 inch thickness, this is a standard Dash 116 size. The 70 durometer hardness rating places it in the hard category, giving it good dimensional stability under compression. Silicone construction provides reliable performance from -80 degrees F to 450 degrees F, making it a strong choice where dry heat resistance or outdoor exposure is a factor. Each package contains 100 pieces.

This O-ring is suited for use in HVAC, plumbing, pool equipment, and general industrial applications where sealing against oils, chemicals, and solvents is required at extended temperature ranges. The silicone compound offers good resistance to weathering and ozone degradation, making it appropriate for outdoor or exposed mechanical assemblies. It is not recommended for applications requiring high oil immersion resistance. Licensed tradespeople and maintenance technicians commonly use Dash 116 O-rings as replacements in valve stems, pump housings, fittings, and fluid connectors.

Key Features

• Dash 116 standard sizing: 0.75 inch ID, 0.938 inch OD, 0.094 inch thickness
• Silicone compound rated from -80 degrees F to 450 degrees F
• 70 durometer hardness for firm, stable sealing under compression
• Round cross section for consistent seat contact in standard O-ring grooves
• Good weather and ozone resistance for outdoor or exposed installations
• Sold in packs of 100 with a minimum order quantity of 1 pack

Compatibility

Designed as a standard Dash 116 replacement O-ring suitable for valve stems, pump housings, fluid connectors, and fittings that accept a 0.75 inch ID silicone seal with a round cross section.

Installation Notes

O-ring replacement should be performed by a qualified technician after depressurizing and isolating the affected system. Inspect the groove for burrs, corrosion, or damage before seating the new O-ring. Lubricate the O-ring with a compatible lubricant prior to installation to prevent tearing during assembly. Do not stretch the O-ring beyond the groove diameter or use tools that may nick or cut the sealing surface.
