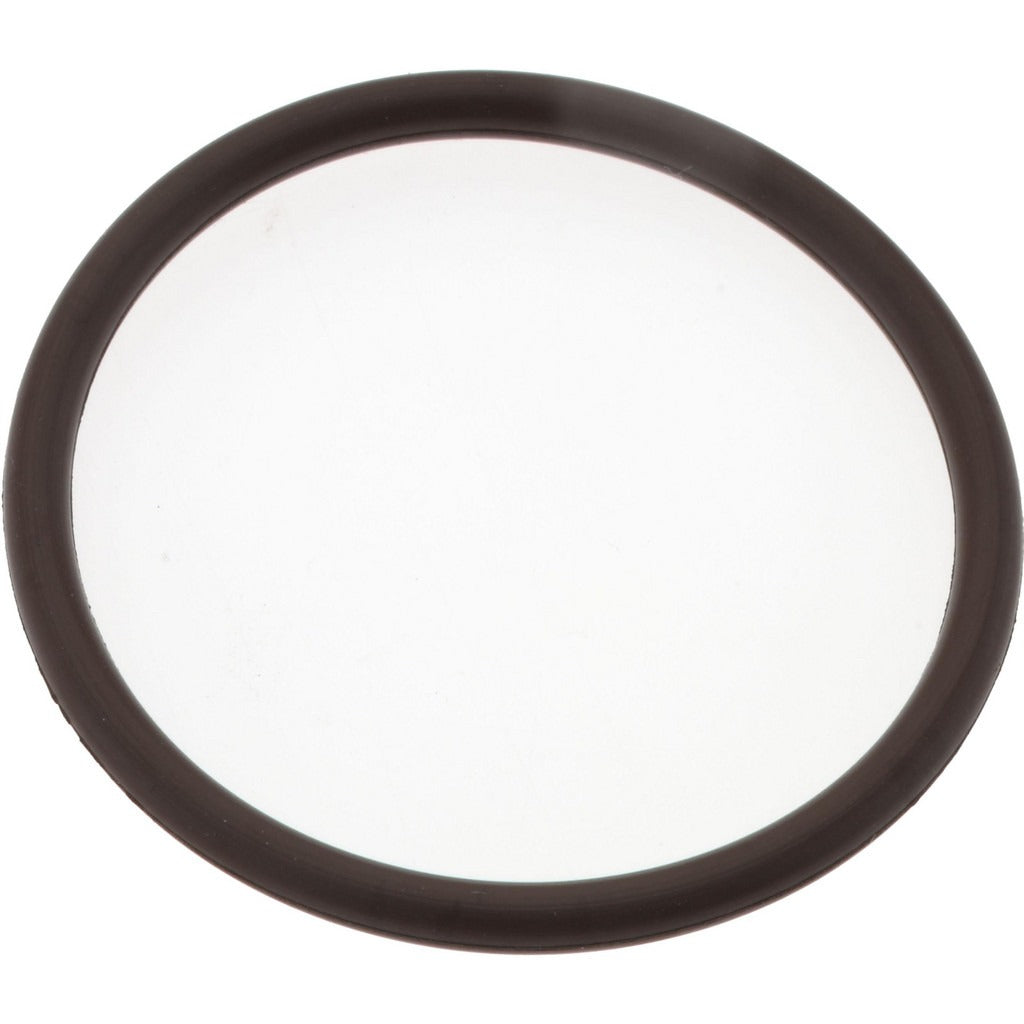

Value Collection ZBD9500-125 Viton O-ring Dash 125

Product Description

The VALUE COLLECTION ZBD9500-125 is a Viton O-ring with a round cross section, designed for use as a static or dynamic face seal in fluid and pneumatic system applications. It measures 1.31 inches inside diameter, 1.50 inches outside diameter, and 0.0937 inches thick, conforming to Dash 125 standard sizing. Made from Viton (fluoroelastic) compound with a hardness rating of 75 Shore A, this O-ring is suited for applications requiring resistance to heat, oils, fuels, and a broad range of industrial chemicals. Licensed HVAC techs, plumbers, and equipment service technicians install these as replacement seals in valves, fittings, pumps, and fluid couplings.

This O-ring is appropriate for sealing applications in residential and commercial HVAC, plumbing, pool, and general industrial equipment. Its Viton material performs across a working temperature range of -15 degrees F to 400 degrees F, making it effective in high-heat environments such as refrigerant circuits, hydraulic assemblies, and hot-water plumbing systems where standard nitrile or EPDM seals may degrade. This part is sold individually. Minimum order quantity is 25 units.

Key Features

• Viton (fluoroelastic) material provides strong resistance to heat, oils, fuels, and chemical exposure
• Dash 125 standard sizing ensures dimensional consistency with OEM and replacement seal specifications
• 75 Shore A hardness rated Hard for reliable sealing under pressure
• Round cross section compatible with standard O-ring grooves
• Operating range of -15 degrees F to 400 degrees F supports high-temperature service environments

Compatibility

Designed as an OEM-style replacement or service seal for any valve, fitting, pump, or fluid component using a Dash 125 O-ring groove with a Viton material specification.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or mechanical service technician. Always depressurize and isolate the system before removing the existing O-ring. Clean the groove thoroughly and inspect for damage before seating the new O-ring. Avoid twisting or rolling the O-ring during installation, and use a compatible lubricant approved for the system fluid to prevent pinching or tearing.
