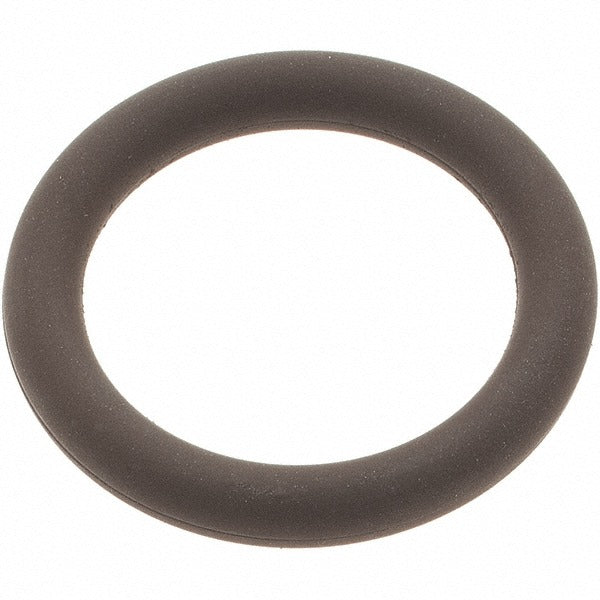

Value Collection ZBD9500-113 Viton O-ring Dash 113

Product Description

The VALUE COLLECTION ZBD9500-113 is a Viton O-ring with a round cross section, sized at 0.560 inches inside diameter and 0.750 inches outside diameter with a thickness of 0.0937 inches (3/32 inches). Viton material provides strong resistance to heat, fuels, oils, and many chemicals, making this O-ring well suited for demanding sealing applications. The Dash 113 designation conforms to AS568 standard sizing. With a hardness rating of 75 Shore A (Hard), this O-ring maintains its sealing profile under compression across a wide service temperature range. Licensed plumbers, HVAC technicians, and industrial maintenance professionals commonly install O-rings of this type in fluid and gas system connections.

This O-ring is used in residential and commercial plumbing, HVAC refrigerant circuits, hydraulic fittings, pneumatic assemblies, and industrial fluid-handling equipment where a heat-resistant and chemically resistant elastomeric seal is required. The Viton compound performs well in applications involving petroleum-based fluids, synthetic lubricants, and high-temperature gases. The round cross section allows for straightforward groove installation in standard AS568 Dash 113 gland dimensions.

Key Features

• Viton (FKM) material offers resistance to heat, fuels, oils, and many chemicals
• Round cross section for reliable compression sealing in standard AS568 grooves
• Dash 113 sizing: 0.560 inches ID, 0.750 inches OD, 0.0937 inches thick
• Rated for service from -15 degrees F to 400 degrees F
• 75 Shore A hardness for firm, stable sealing under load

Compatibility

Designed as an OEM-style replacement or service seal for any application requiring an AS568 Dash 113 O-ring with a Viton round cross section.

Installation Notes

Shut off all fluid or gas supply and relieve system pressure before replacing any O-ring. Inspect the gland or groove for wear, scoring, or contamination prior to installation. Lubricate the O-ring with a compatible lubricant before seating to reduce the risk of tearing during assembly. Installation should be performed by a qualified tradesperson following applicable plumbing, mechanical, or equipment codes.
