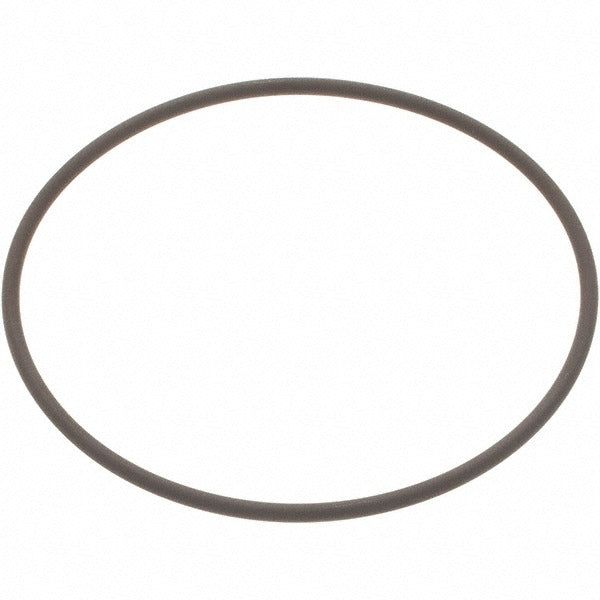

Value Collection ZBD9500-033 Viton O-ring Dash 033

Product Description

The VALUE COLLECTION ZBD9500-033 is a Dash 033 Viton O-ring designed for static and dynamic sealing applications across plumbing, HVAC, hydraulic, and fluid-handling systems. The ring measures 2 inches inside diameter, 2.13 inches outside diameter, and 0.0625 inches thick with a round cross section. Viton material provides broad chemical resistance and a working temperature range of -15 degrees F to 400 degrees F, making it suitable for service environments that exceed the limits of standard Buna-N or EPDM compounds. Shore hardness is rated at 75, placing it in the hard category for reliable sealing under pressure.

This O-ring is a general-purpose sealing component used in residential and commercial applications where fluoroelastomer resistance to fuels, oils, and elevated temperatures is required. Typical install locations include pump housings, valve bodies, pipe fittings, and fluid-line connections in HVAC refrigerant circuits, hydraulic assemblies, and chemical fluid systems. Its round cross section seats predictably in standard O-ring grooves machined to Dash 033 dimensions.

Key Features

• Viton (fluoroelastomer) construction for resistance to fuels, oils, and aggressive chemicals
• Working temperature range of -15 degrees F to 400 degrees F
• Shore hardness of 75 (hard rating) for stable sealing under pressure
• Round cross section seats reliably in standard Dash 033 O-ring grooves
• 2 inches ID x 2.13 inches OD x 0.0625 inches thick — precise dimensional tolerance

Compatibility

Designed as a standard Dash 033 O-ring replacement for any application requiring a 2-inch ID fluoroelastomer seal with a round cross section and 0.0625-inch thickness.

Installation Notes

Installation is performed by qualified plumbers, HVAC technicians, or hydraulic system mechanics depending on the application. Always depressurize and drain the system before replacing O-rings, and ensure the groove is clean and free of debris before seating the new ring. Lightly lubricating the O-ring with a compatible fluid or grease aids installation and reduces the risk of tearing. Do not overstretch the ring during installation.
