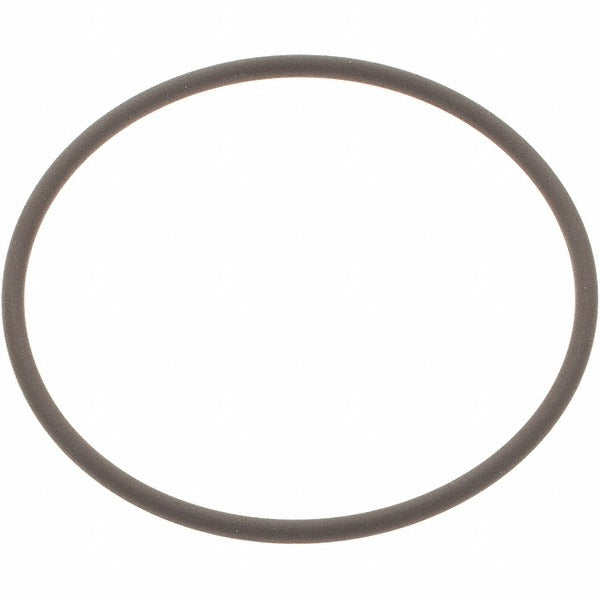

Value Collection ZBD9500-030 Viton O-ring Dash 030

Product Description

The VALUE COLLECTION ZBD9500-030 is a Dash 030 Viton O-ring with a round cross section, designed for static and dynamic sealing applications across a wide range of fluid and gas systems. With a 1.630-inch inside diameter, 1.750-inch outside diameter, and a 0.0625-inch cross-section thickness, this O-ring provides a precise fit in standard Dash 030 grooves. Viton (fluoroelastomer) construction delivers strong resistance to fuels, oils, hydraulic fluids, and chemicals, making it a reliable sealing choice in demanding environments. The 75 Shore A hardness rating indicates a firm durometer suited for moderate-to-high pressure sealing.

This O-ring is used in hydraulic systems, plumbing assemblies, HVAC equipment, fuel delivery systems, and general industrial machinery wherever Dash 030 groove geometry is specified. The Viton material is appropriate for applications involving petroleum-based fluids, synthetic lubricants, and elevated operating temperatures. It is installed by plumbers, HVAC technicians, hydraulic system technicians, and maintenance professionals. The rated temperature range of -15 degrees F to 400 degrees F makes it suitable for both hot-side and moderate cold-side service conditions.

Key Features

• Viton (fluoroelastomer) construction for resistance to fuels, oils, and many chemical media
• Dash 030 standard sizing: 1.630 inches ID, 1.750 inches OD, 0.0625 inches thick
• Round cross-section profile for consistent groove seating
• 75 Shore A hardness — firm durometer suited for moderate-to-high pressure sealing
• Operating temperature range: -15 degrees F to 400 degrees F
• Sold individually; minimum order quantity is 25 units

Compatibility

Designed as a standard Dash 030 O-ring replacement for any application requiring a 1.630-inch ID Viton seal with a 0.0625-inch cross section. Verify groove dimensions against AS568 Dash 030 specifications before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with the host system — hydraulic, plumbing, HVAC, or fuel handling. Always depressurize and isolate the system before replacing O-rings. Lightly lubricate the O-ring with a compatible grease or fluid prior to seating to prevent rolling or tearing during assembly. Inspect the groove for burrs or debris that could damage the seal surface.
