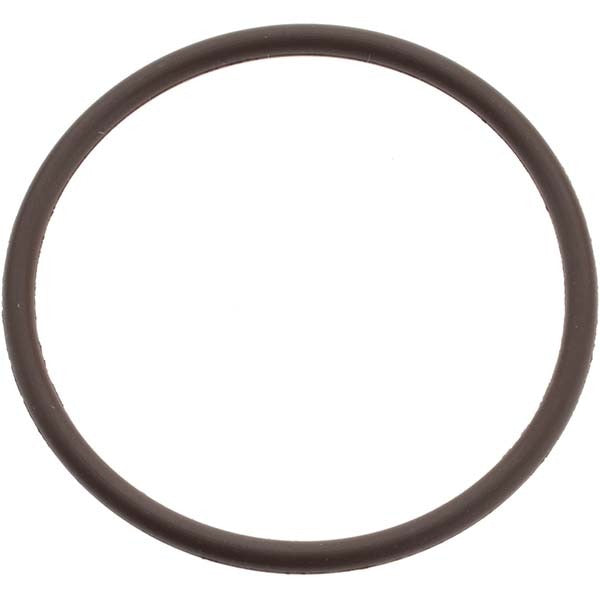

Value Collection ZBD9500-024 Viton O-ring Dash 024

Product Description

The VALUE COLLECTION ZBD9500-024 is a Dash 024 Viton O-ring with a round cross section, designed for use in fluid and pneumatic sealing applications across HVAC, plumbing, and industrial systems. It measures 1.13 inches inside diameter and 1.25 inches outside diameter with a 0.0625-inch cross-section thickness. Manufactured from Viton (fluorocarbon elastomer), this O-ring offers strong resistance to heat, oils, fuels, and many chemical media. It is rated for service from -15 degrees F to 400 degrees F, making it a dependable choice for high-temperature or chemically demanding environments. Licensed tradespeople and maintenance technicians install this type of O-ring during equipment overhaul, valve service, and pump or compressor sealing work.

This O-ring is suited for residential and commercial applications where Viton sealing material is required by system specifications or fluid compatibility requirements. Typical installations include refrigerant system fittings, hydraulic valves, hot-water plumbing connections, and chemical-handling assemblies. It is sold individually per package, with a minimum order quantity of 25 units, making it appropriate for shop stock, service fleet kits, or planned maintenance programs in trade environments.

Key Features

• Viton (fluorocarbon elastomer) construction for superior chemical and heat resistance
• Rated from -15 degrees F to 400 degrees F working temperature range
• Round cross section for consistent sealing contact
• Shore hardness of 75 (Hard rating) for dimensional stability under pressure
• Dash 024 standard sizing for easy cross-reference and replacement
• Lightweight at 0.01 pounds, suitable for compact fittings and tight assemblies

Compatibility

Designed as an OEM-style replacement Dash 024 Viton O-ring for sealing applications in HVAC, plumbing, hydraulic, and industrial fluid systems requiring fluorocarbon elastomer material compatibility.

Installation Notes

Installation should be performed by a licensed technician familiar with the applicable system type — HVAC, plumbing, or hydraulic. Always depressurize and isolate the relevant circuit before removing the old O-ring and seating the replacement. Inspect the mating groove for wear, debris, or corrosion before installation. Do not over-stretch the O-ring during fitting, and avoid using petroleum-based lubricants with Viton material unless confirmed compatible with system fluids.
