Value Collection ZBD9500-022 Viton O-ring Dash 022

Product Description

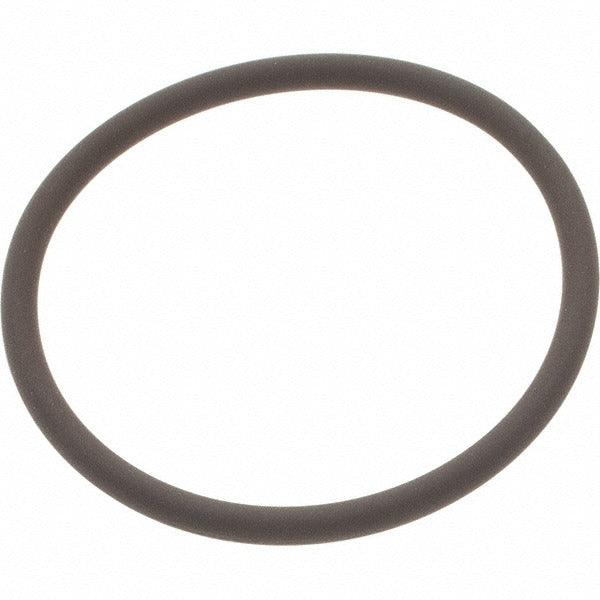

The VALUE COLLECTION ZBD9500-022 is a Dash 022 Viton O-ring with a round cross section, designed for static and dynamic sealing applications across HVAC, plumbing, and industrial fluid systems. It measures 1 inch inside diameter, 1.13 inches outside diameter, and 0.0625 inches (1/16 inch) thick. Made from Viton (fluoroelastic) compound, this O-ring carries a Shore A hardness rating of 75, placing it in the hard hardness category. It holds a rated service temperature range of -15 degrees F to 400 degrees F, making it well suited for high-temperature fluid and gas sealing environments where standard Buna-N or neoprene compounds fall short.

This O-ring is appropriate for use in residential and commercial HVAC equipment, refrigeration components, hydraulic and pneumatic fittings, and plumbing assemblies where chemical resistance and elevated temperature performance are required. Viton compound provides strong resistance to petroleum-based fluids, lubricants, and many aggressive chemicals, making it a common choice for service technicians replacing seals in compressors, valves, and manifold connections. Sold individually with a minimum order quantity of 25 pieces.

Key Features

• Viton (fluoroelastic) material for superior chemical and heat resistance
• Service temperature range: -15 degrees F to 400 degrees F
• Shore A hardness of 75 (hard rating) for reliable compression sealing
• Round cross section for consistent seating in standard O-ring grooves
• Dash 022 sizing per industry-standard O-ring dash numbering system
• Lightweight at 0.01 pounds per unit

Compatibility

Designed as an OEM-style replacement or service seal for any application requiring a Dash 022 O-ring with Viton material, a 1 inch inside diameter, 1.13 inch outside diameter, and 0.0625 inch cross section thickness.

Installation Notes

O-ring replacement is performed by licensed HVAC technicians, plumbers, and mechanical service technicians depending on the system involved. Always de-energize the equipment and relieve system pressure or refrigerant charge before removing any fittings or components containing O-ring seals. Inspect the groove and mating surfaces for scoring or debris before installing the new seal. Lightly lubricating the O-ring with a compatible lubricant prior to installation helps prevent twisting and tearing during assembly.
