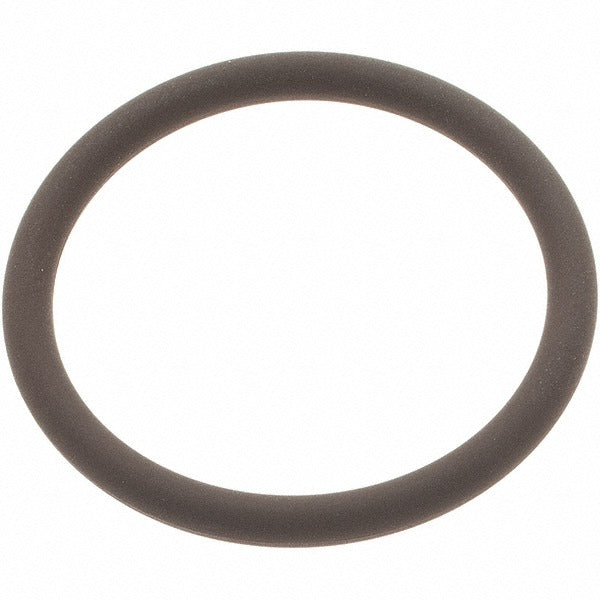

Value Collection ZBD9500-017 Viton O-ring Dash 017

Product Description

The VALUE COLLECTION ZBD9500-017 is a Dash 017 Viton O-ring with a round cross section, designed for static and dynamic sealing applications across a wide range of industrial and mechanical systems. Viton material provides strong resistance to heat, oils, fuels, hydraulic fluids, and many chemicals, making this O-ring a reliable choice where standard nitrile compounds fall short. The ring measures 0.69 inches inside diameter, 0.81 inches outside diameter, and 0.0625 inches thick. With a hardness rating of 75 Shore A and a working temperature range of -15 degrees F to 400 degrees F, this O-ring handles demanding thermal cycling without significant degradation. Licensed tradespeople and MRO technicians typically install or replace these as part of fluid system maintenance or component rebuilds.

This O-ring is suited for use in fluid handling, hydraulic, pneumatic, and fuel system assemblies where a Dash 017 size is specified. Common install scenarios include pump seals, valve stems, fitting connections, and actuator housings found in HVAC equipment, plumbing assemblies, and light industrial machinery. The Viton compound is particularly well matched to applications involving petroleum-based fluids, refrigerant contact, or elevated service temperatures that would degrade standard rubber O-rings. This part is sold individually, with a minimum order quantity of 25 units.

Key Features

• Viton material for resistance to heat, fuels, oils, and many chemical media
• Working temperature range of -15 degrees F to 400 degrees F
• 75 Shore A hardness for a firm, reliable seal under pressure
• Round cross section for consistent seating in standard O-ring grooves
• Dash 017 standard sizing for straightforward replacement and sourcing
• Compact dimensions: 0.69 inches ID, 0.81 inches OD, 0.0625 inches thick

Compatibility

Designed as a standard Dash 017 O-ring replacement for any application specifying a 0.69 inches ID by 0.81 inches OD by 0.0625 inches thick round cross section Viton seal.

Installation Notes

Depressurize and isolate the fluid circuit or mechanical assembly before removing or installing any O-ring. Inspect the mating groove for nicks, burrs, or corrosion that could damage the new seal. A light application of a compatible lubricant helps seat the O-ring without rolling or twisting during assembly. Verify chemical compatibility between the Viton compound and all process fluids before installation.
