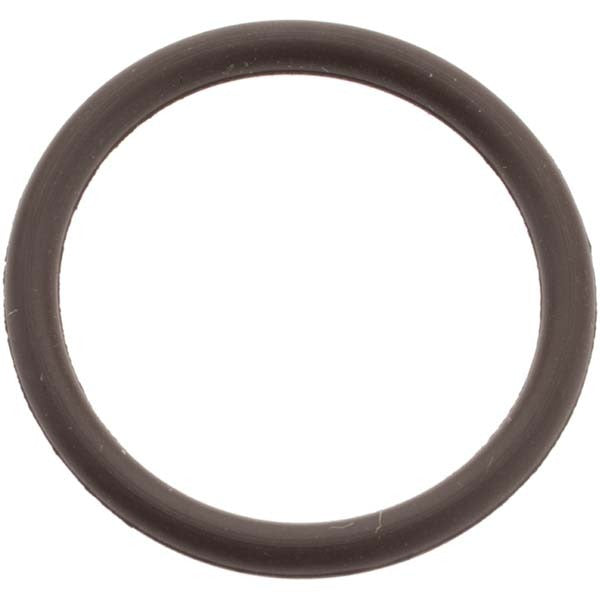

Value Collection ZBD9500-016 Viton O-ring Dash 016

Product Description

The VALUE COLLECTION ZBD9500-016 is a Viton O-ring with a round cross section, sized to Dash 016 specifications. It measures 0.63 inches inside diameter, 0.75 inches outside diameter, and 0.0625 inches thick. Viton material provides strong resistance to oils, fuels, hydraulic fluids, and high-temperature environments, making this O-ring a reliable sealing solution in demanding service conditions. With a hardness rating of 75 Shore A, the ring maintains its shape under compression across a working temperature range of -15 degrees F to 400 degrees F. Licensed HVAC technicians, plumbers, and industrial mechanics commonly stock Dash 016 O-rings for routine seal replacements in fittings, valves, and connectors.

This O-ring is suited for static and dynamic sealing applications in HVAC, plumbing, hydraulic, and pneumatic systems where Viton elastomer compatibility is required. The Dash 016 sizing is a widely referenced standard dimension used in refrigeration service valves, gas fittings, and fluid system components. It is sold individually with a minimum order quantity of 25 units, making it appropriate for service shops and contractors maintaining stock of common seal sizes.

Key Features

• Viton elastomer construction for resistance to oils, fuels, and high operating temperatures
• Working temperature range of -15 degrees F to 400 degrees F
• 75 Shore A hardness for firm, reliable sealing under compression
• Round cross section conforms to Dash 016 standard sizing
• Inside diameter of 0.63 inches and outside diameter of 0.75 inches for precise fitment
• Lightweight at 0.01 pounds per unit, suitable for bulk stocking

Compatibility

Designed as a standard Dash 016 O-ring replacement for static and dynamic sealing applications in HVAC, plumbing, hydraulic, and pneumatic equipment requiring Viton-compatible elastomer seals.

Installation Notes

O-ring replacement should be performed by a qualified technician after isolating and depressurizing the system being serviced. Inspect the groove and mating surfaces for damage or debris before installing the new O-ring. Apply a compatible lubricant approved for Viton compounds to ease installation and prevent rolling or twisting during assembly. Do not overstretch the O-ring during installation, as this can reduce sealing effectiveness.
