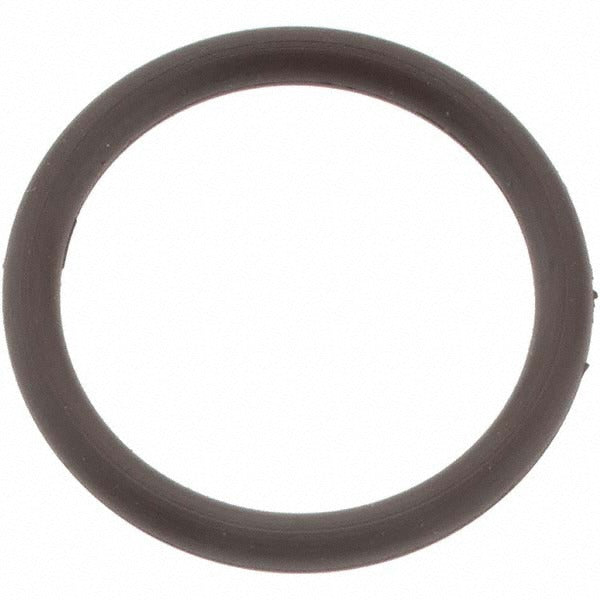

Value Collection ZBD9500-015 Viton O-ring Dash 015

Product Description

The VALUE COLLECTION ZBD9500-015 is a Viton O-ring with a round cross section, designed to provide a reliable fluid or gas seal in demanding industrial and mechanical applications. With an inside diameter of 0.563 inches, an outside diameter of 0.690 inches, and a thickness of 0.0625 inches (Dash 015 designation), this O-ring is built for applications where temperature extremes and chemical exposure are common. Viton compound delivers strong resistance to oils, fuels, hydraulic fluids, and many solvents. The 75 Shore A hardness rating classifies this as a hard O-ring, appropriate for higher-pressure sealing environments. Installation is handled by maintenance technicians, machinists, plumbers, and HVAC service professionals.

This O-ring suits static and dynamic sealing applications across hydraulic systems, pneumatic fittings, plumbing connections, fuel system components, and HVAC equipment where elevated temperatures or chemical contact would degrade standard nitrile or EPDM compounds. The Dash 015 sizing is a widely used standard dimension found in valves, cylinder heads, manifold fittings, and fluid transfer assemblies in both residential and light commercial equipment. Minimum order quantity is 25 pieces; each package contains 1 piece.

Key Features

• Viton material provides excellent resistance to oils, fuels, and many chemicals
• Operating temperature range of -15 degrees F to 400 degrees F
• 75 Shore A hardness rated as hard for higher-pressure sealing applications
• Round cross section conforms to standard Dash 015 O-ring dimensions
• Inside diameter of 0.563 inches and outside diameter of 0.690 inches for precise fitment
• Thickness of 0.0625 inches ensures consistent groove seating

Compatibility

Designed as a standard Dash 015 O-ring replacement for any hydraulic, pneumatic, plumbing, or HVAC assembly requiring a round-cross-section Viton seal at this dimension.

Installation Notes

Shut off and depressurize the system completely before removing or installing any O-ring. Inspect the groove for burrs, debris, or wear that could damage the new seal. Apply a light coat of a compatible lubricant to the O-ring prior to installation to prevent tearing during assembly. Do not stretch the O-ring excessively or use sharp tools that may nick the sealing surface.
