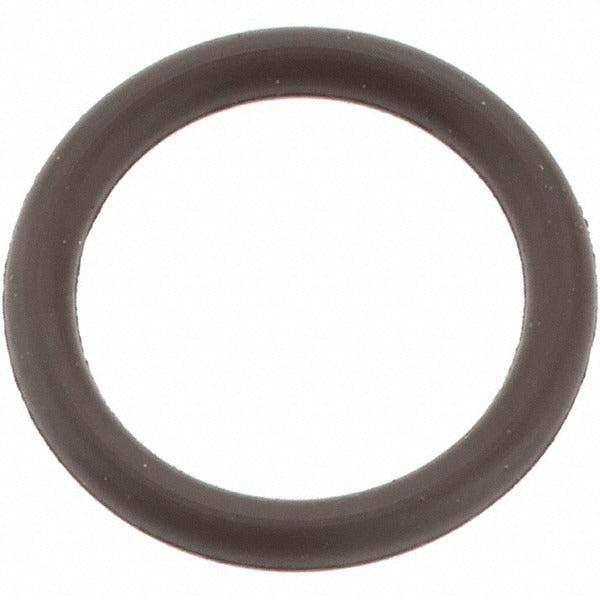

Value Collection ZBD9500-013 Viton O-ring Dash 013

Product Description

The VALUE COLLECTION ZBD9500-013 is a Dash 013 Viton O-ring with a round cross section, used as a static or dynamic sealing element in fluid and gas systems. It measures 0.4380 inches inside diameter, 0.5630 inches outside diameter, and 0.0625 inches thick. The Viton material provides strong resistance to fuels, oils, hydraulic fluids, and high temperatures, making it a standard choice for HVAC, plumbing, refrigeration, and mechanical service applications. Rated Hard at a Shore A hardness of 75, this O-ring is installed by licensed trades and maintenance technicians wherever a reliable, chemically resistant face or radial seal is required.

This O-ring is suited for residential and commercial maintenance and repair work across a range of fluid-handling and mechanical systems. Common applications include valve seats, pipe fittings, pump housings, compressor ports, and refrigerant-side connections where Viton compound is specified. Its operating temperature range of -15 degrees F to 400 degrees F makes it appropriate for both low-temperature refrigerant service and high-temperature steam or hot-fluid environments. Technicians working on HVAC equipment, plumbing assemblies, or industrial machinery routinely use Dash 013 O-rings as replacement seals during component rebuilds or preventive maintenance.

Key Features

• Viton material resists fuels, oils, hydraulic fluids, and many chemical media
• Operating temperature range: -15 degrees F to 400 degrees F
• Round cross section for consistent sealing in standard O-ring grooves
• Shore A hardness of 75 rated Hard, providing firm groove retention under pressure
• Dash 013 designation for straightforward cross-reference and replacement sourcing
• Lightweight at 0.01 pounds for easy handling in field service kits

Compatibility

Designed as an OEM-style replacement seal for any application specifying a Dash 013 O-ring with Viton compound in a standard AS568 groove profile.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or qualified mechanical technicians. Always depressurize and isolate the system before removing or installing O-rings, and verify that all residual fluid is purged from the line. Lubricate the O-ring with a compatible lubricant approved for the system media before seating it in the groove to prevent twisting or cutting during assembly. Do not over-stretch the O-ring during installation, as this can reduce sealing effectiveness and service life.
