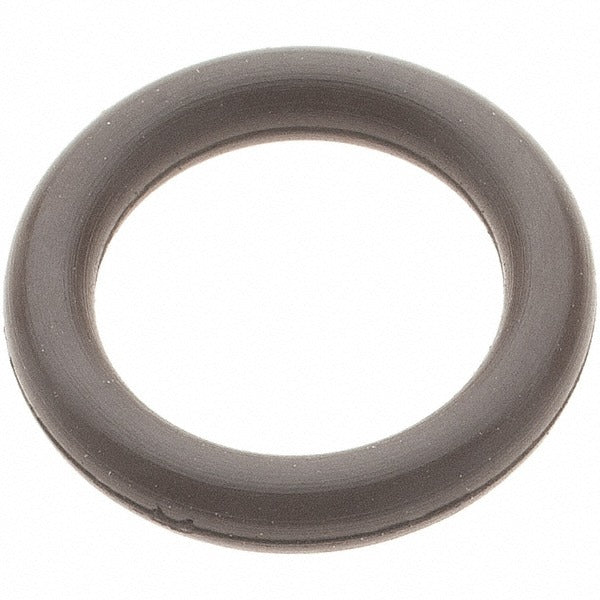

Value Collection ZBD9500-011 Viton O-ring Dash 011

Product Description

The VALUE COLLECTION ZBD9500-011 is a Dash 011 Viton O-ring with a round cross section, designed for use as a static or dynamic seal in fluid and pneumatic systems. It measures 0.3130 inches inside diameter, 0.4370 inches outside diameter, and 0.0625 inches thick. Viton material provides strong resistance to fuels, oils, hydraulic fluids, and a wide range of chemicals. With a hardness rating of 75 Shore A, this O-ring maintains its seal under pressure across a broad operating temperature range of -15 degrees F to 400 degrees F. It is installed by HVAC technicians, plumbers, mechanics, and maintenance professionals in a wide variety of sealing applications.

This O-ring is suited for residential and commercial applications where a small-diameter, chemically resistant seal is required. Common use cases include sealing fittings, valves, pumps, and hydraulic or pneumatic connectors. Its Viton construction makes it a preferred choice when exposure to petroleum-based fluids, solvents, or elevated temperatures would degrade standard Buna-N or EPDM seals. Sold individually with a minimum order quantity of 25 units per order.

Key Features

• Viton material resists fuels, oils, hydraulic fluids, and many industrial chemicals
• Round cross section ensures consistent seating in standard O-ring grooves
• Operating temperature range: -15 degrees F to 400 degrees F
• Shore A hardness of 75 provides firm compression with reliable sealing
• Dash 011 standard sizing for easy cross-reference and replacement
• Lightweight at 0.01 pounds per piece for easy handling and stocking

Compatibility

Designed as a standard Dash 011 O-ring replacement for any application requiring a 0.3130-inch ID, 0.4370-inch OD, 0.0625-inch thick round cross-section seal in Viton material.

Installation Notes

Always shut off fluid supply and depressurize the system before replacing O-rings. Inspect the groove for burrs, debris, or damage prior to installation. Lightly lubricate the O-ring with a compatible grease or fluid before seating to reduce the risk of tearing during assembly. Avoid using petroleum-based lubricants with non-petroleum-compatible seals in the same system.
