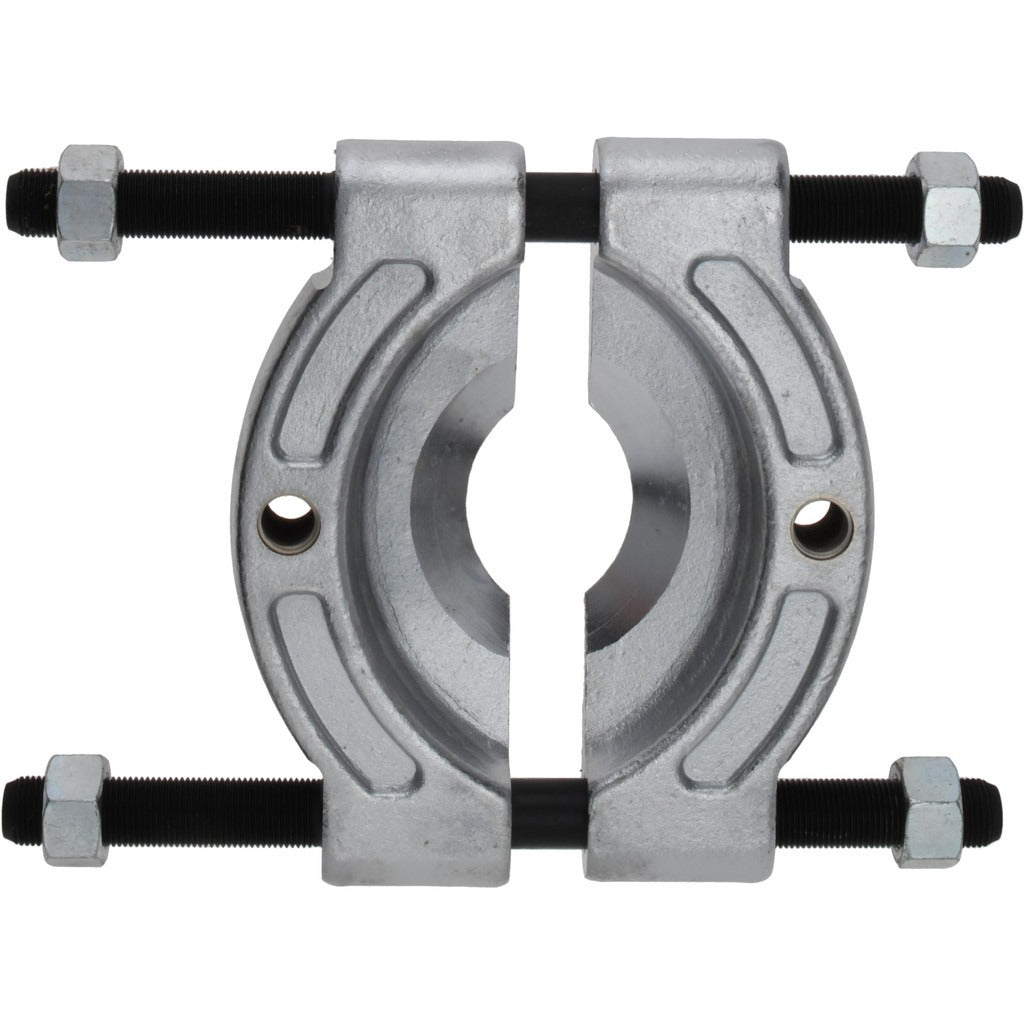

Value Collection YC-9025 Bearing Separator 2-jaw

Product Description

The VALUE COLLECTION YC-9025 is a 2-jaw bearing separator designed to remove press-fit bearings from shafts and housings without damaging the surrounding components. The tool spans a minimum spread of 105 millimeters up to a maximum spread of 5-29/32 inches (150 millimeters), giving technicians flexibility across a range of bearing sizes. A 0.75-inch center bolt drives the separation force, and the bolt length of 10.83 inches provides the reach needed for deep-set applications. Machinists, millwrights, and maintenance technicians reach for this tool when a standard puller set does not provide the thin-profile jaw clearance required to seat behind a bearing face.

This bearing separator is suited for general industrial maintenance, mechanical repair shops, and any service environment where press-fit bearings must be removed cleanly. Typical applications include motor shaft bearings, gearbox components, and pump assemblies. The adjustable jaw spread range makes it usable across multiple bearing sizes without swapping tools, reducing downtime during teardown procedures.

Key Features

• Adjustable spread from 105 millimeters to 150 millimeters (5-29/32 inches) to fit a range of bearing diameters
• 2-jaw design provides secure purchase behind bearing faces in confined spaces
• 0.75-inch center bolt diameter delivers controlled separation force
• 10.83-inch center bolt length accommodates deep-set bearing positions
• Single-piece tool — no additional jaw inserts required for the stated spread range

Compatibility

Designed as a general-purpose bearing separator suitable for press-fit bearings with an outer diameter or seating dimension falling within the 105 millimeter to 150 millimeter (5-29/32 inch) spread range.

Installation Notes

Bearing removal and installation should be performed by qualified mechanical technicians familiar with press-fit tolerances and proper puller practices. Before beginning work, de-energize and lock out all machinery per applicable OSHA lockout/tagout procedures. Seat the separator jaws fully and evenly behind the bearing face before applying force through the center bolt to prevent jaw slip or component damage. Do not exceed the tool's rated spread range — using the separator outside its stated capacity risks jaw failure and personal injury.
