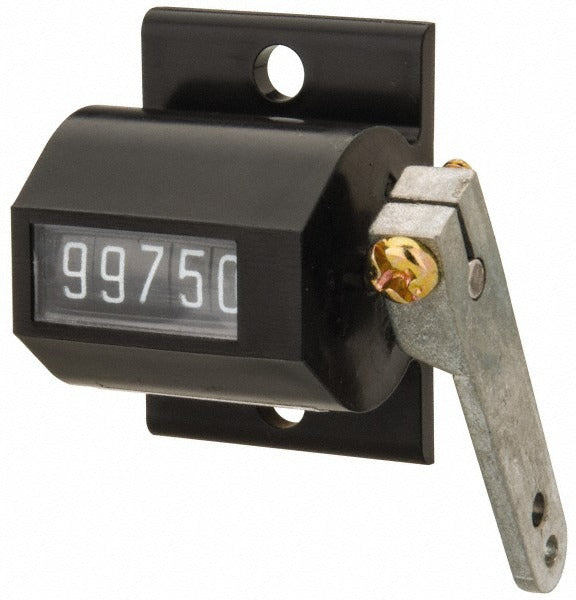

Value Collection WS-PE-CTER-003 Mechanical Stroke Counter

Product Description

The VALUE COLLECTION WS-PE-CTER-003 is a 5-digit mechanical stroke counter designed to track cumulative cycle or stroke counts on machinery, pneumatic equipment, and automated assemblies. The unit uses a mechanical display with no electronic components, making it suitable for environments where electrical noise, moisture, or power availability would otherwise complicate monitoring. The non-resettable design ensures a permanent running total, which is useful for maintenance scheduling and service interval tracking. At 0.04 pounds, the counter is compact and lightweight, fitting into tight panel or equipment mounting locations.

This stroke counter is used in industrial and light commercial maintenance applications where recording the total number of mechanical strokes, cycles, or actuations is required. Typical install locations include pneumatic cylinders, press equipment, conveyor systems, and automated tooling. Facilities maintenance technicians, machine builders, and industrial service professionals are the primary installers. The unit requires no power supply, which simplifies installation and reduces wiring requirements in the field.

Key Features

• 5-digit mechanical display provides a clear, power-free readout of accumulated stroke counts
• Non-resettable counter maintains a permanent total for accurate service and maintenance records
• Compact form factor at 9.65 inches height, 9.65 inches width, and 1.38 inches length fits tight mounting spaces
• No electronic components eliminates sensitivity to electrical interference or power loss
• Lightweight at 0.04 pounds for easy integration into existing equipment without added load

Compatibility

Designed as a general-purpose mechanical stroke counter for use with pneumatic cylinders, press equipment, and automated machinery requiring non-resettable cumulative cycle tracking.

Installation Notes

Installation is typically performed by a facilities maintenance technician or machine builder. The counter should be mechanically coupled or positioned to register each stroke or actuation of the target component. Power down or de-energize all associated equipment and relieve pneumatic or hydraulic pressure before mounting or adjusting the counter. Follow the equipment manufacturer guidelines and any applicable local safety codes for machine guarding and lockout/tagout procedures during installation.
