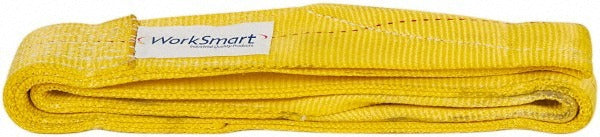

Value Collection WS-MH-SLNG1-147 Web Sling 17200 Lb

Product Description

The VALUE COLLECTION WS-MH-SLNG1-147 is a 2-ply flat web sling rated for 17,200 pounds in a vertical hitch configuration. At 6 feet in length and 3 inches wide, this sling is built for rigging applications where a reliable, high-capacity lift point is required. The 2-ply construction distributes load across the width of the sling, reducing concentrated stress on the webbing material. Weighing 3.7 pounds, it is manageable for a single rigger to position and rig. Licensed riggers, crane operators, and industrial maintenance crews are the typical users for a sling of this rating and size.

This sling is suited for vertical hitch lifts in industrial, construction, and warehouse environments. A choker hitch configuration reduces the working load; the supplier data notes a choker capacity of 6,900 pounds, which must be observed when wrapping the sling around a load. Basket hitch configurations will carry a different working load limit and should be verified against the sling's attached load rating tag before use. This sling is appropriate for general rigging on structural steel, machinery, and fabricated assemblies where load dimensions and weight are within the sling's rated limits.

Key Features

• 17,200 pound vertical hitch capacity (4.30 tons)
• 6,900 pound choker hitch capacity
• 6-foot working length
• 3-inch wide, 2-ply flat web construction for load distribution
• Lightweight at 3.7 pounds for single-rigger handling

Compatibility

Designed as a general-purpose flat web sling for vertical and choker hitch rigging applications where the rated working load limits and sling dimensions are appropriate for the load being lifted.

Installation Notes

Rigging and lifting operations must be performed by a qualified rigger familiar with ASME B30.9 standards for slings. Always verify the working load limit (WLL) label attached to the sling before each lift, and inspect the webbing for cuts, abrasion, UV degradation, or chemical damage. Never exceed the rated capacity for the hitch type in use. Remove the sling from service if any damage is found.
