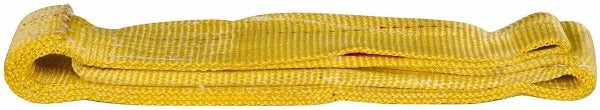

Value Collection WS-MH-SLNG1-146 Web Sling 17200 Lb

Product Description

The VALUE COLLECTION WS-MH-SLNG1-146 is a 2-ply nylon web sling rated for 17,200 pounds vertical capacity and 6,900 pounds in choker configuration. Measuring 4 feet in length and 3 inches in width, this sling is built for repetitive rigging and lifting applications in industrial, construction, and warehouse environments. At 2.42 pounds, it is light enough for daily single-technician handling while delivering load ratings suited to heavy material movement. Rigging professionals, maintenance crews, and millwrights rely on this type of sling where flexibility and load protection are priorities over wire rope or chain alternatives.

This sling is designed for use in vertical and choker hitches in general rigging operations. Typical applications include lifting structural components, equipment, and bundled materials on job sites, in fabrication shops, and during mechanical installations. The flat web construction distributes load across the contact surface, reducing the risk of damage to finished or soft-material loads compared to chain rigging. It suits both overhead crane systems and manual lift-assist equipment where a rated textile sling is required.

Key Features

• 17,200 lb vertical capacity for heavy lifting applications
• 6,900 lb choker capacity for wrapped and angled hitch configurations
• 2-ply construction adds strength and durability over single-ply alternatives
• 3 inch wide flat web design distributes load and protects load surfaces
• 4 foot length suits short-reach overhead and horizontal rigging setups
• Lightweight at 2.42 pounds for easy daily handling and transport

Compatibility

Designed as a standard flat web sling for use with overhead cranes, hoists, and rigging hardware accepting 3 inch wide textile slings with vertical ratings up to 17,200 pounds.

Installation Notes

Rigging of rated slings should be performed by qualified personnel familiar with ASME B30.9 standards for slings. Inspect the sling for cuts, abrasion, UV degradation, chemical exposure, or heat damage before each use and remove from service immediately if any damage is found. Never exceed the rated load capacity for the selected hitch configuration. Protect the sling from sharp edges during lifts using edge guards or softeners when contact with abrasive or cutting surfaces is possible.
