Value Collection WS-HF-CAM-017 Viton O-ring Dash 001

Product Description

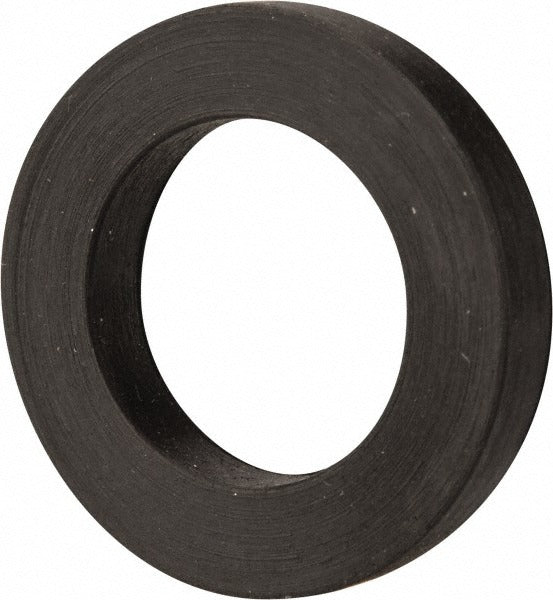

The VALUE COLLECTION WS-HF-CAM-017 is a Viton square cross section O-ring used to create static or dynamic fluid seals in hydraulic, pneumatic, plumbing, and HVAC service applications. It measures 0.5 inches inside diameter, 1.03 inches outside diameter, and 0.156 inches thick with a square cross section profile. The Dash 001 designation identifies its dimensional standard within the O-ring numbering system. Viton material provides strong resistance to petroleum-based fluids, fuels, lubricants, and elevated temperatures, making it a preferred choice where standard Buna-N compounds are insufficient. Licensed tradespeople and field technicians install this type of seal during equipment repair, valve service, and pump rebuilds.

This O-ring is suited for use in residential and commercial systems where a reliable fluid or gas seal is required at connection points, valve stems, pump housings, or fitting interfaces. The square cross section increases sealing surface contact compared to a round profile, which can reduce bypass leakage in groove-seated applications. Plumbers, HVAC technicians, and hydraulic equipment service professionals commonly stock Dash 001 Viton O-rings for general-purpose seal replacement tasks across a range of system pressures and operating temperatures.

Key Features

• Square cross section profile increases sealing contact area in groove-seated applications
• Viton material resists petroleum fluids, fuels, lubricants, and elevated operating temperatures
• Dash 001 standard sizing for straightforward cross-referencing and replacement sourcing
• 0.5 inches inside diameter with 0.156 inches thickness for precise groove fit
• Lightweight at 0.01 pounds for easy handling and bulk stocking

Compatibility

Designed as an OEM-style replacement or service seal for any application requiring a Dash 001 square cross section Viton O-ring with a 0.5 inch inside diameter and 0.156 inch thickness.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with the sealing requirements of the system being serviced. Always depressurize and isolate the system before removing any existing seals or fittings. Inspect the groove for burrs, corrosion, or damage that could compromise the new seal before installation. Avoid using sharp tools that may cut or nick the O-ring during seating.
