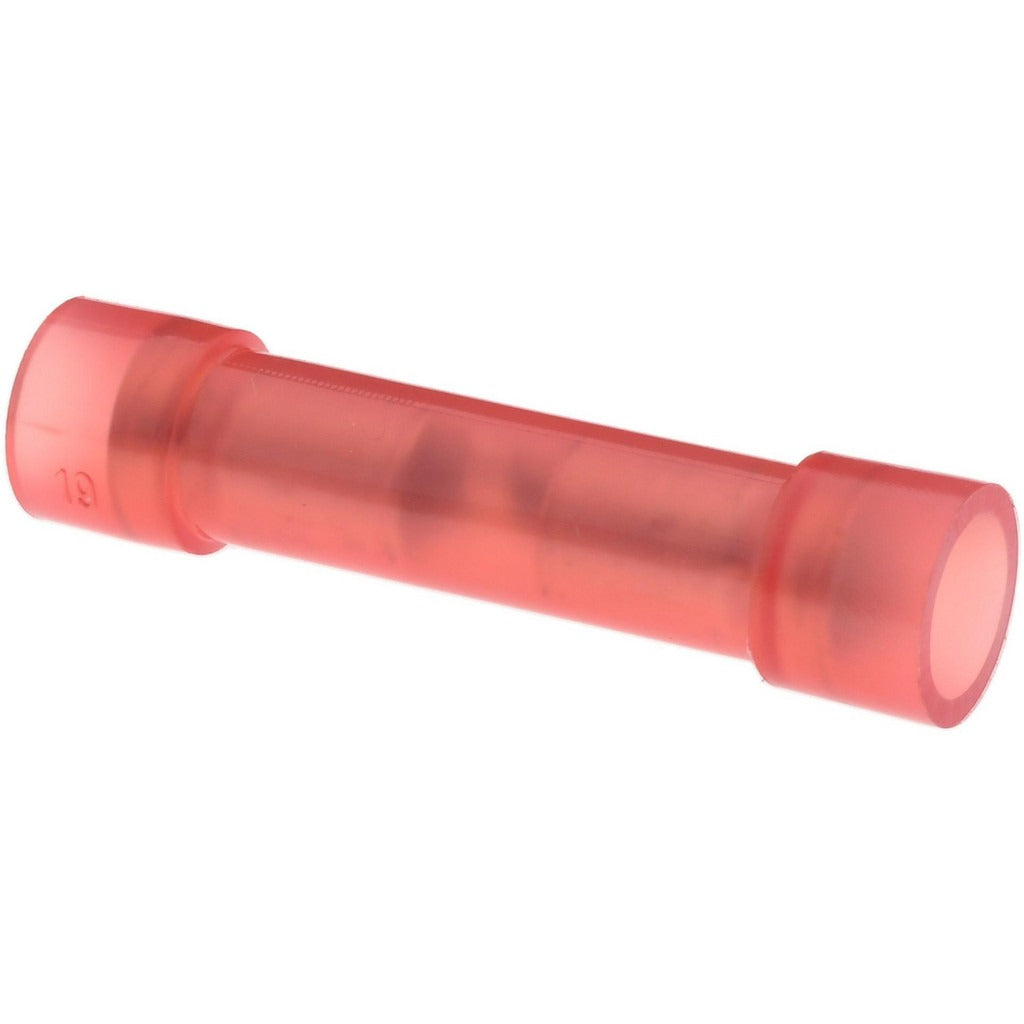

Value Collection WBNYDF1 Butt Splice Terminal Crimp-on Red

Product Description

The VALUE COLLECTION WBNYDF1 is a fully insulated, crimp-on butt splice terminal designed for joining two conductors in a single in-line connection. The terminal features a nylon insulation sleeve over a copper contact body, providing electrical isolation and corrosion resistance in tight wiring environments. It accepts wire sizes from 0.50 to 1.50 square millimeters and measures 1.024 inches in overall length with an overall diameter of 0.177 inches. The red color coding corresponds to its wire size range for quick identification during installation. Electricians and low-voltage technicians install these terminals in control wiring, panel wiring, and field device connections.

This butt splice terminal is suited for residential and light commercial electrical work where compact, insulated wire splices are required. Typical applications include HVAC control circuits, appliance wiring, panel sub-assemblies, and low-voltage device hookups. The crimp-on connection method creates a secure, gas-tight joint without soldering, making it appropriate for production and service environments alike. Each terminal accepts one wire entry on each end for a total of two wire entries per splice.

Key Features

• Fully insulated nylon sleeve for electrical isolation and mechanical protection
• Crimp-on connection for fast, reliable, solder-free splices
• Copper contact material for low-resistance conductivity
• Red color coding identifies 0.50 to 1.50 sq mm wire size range at a glance
• cUL Listed and UL Listed with RoHS compliance
• Compact profile at 1.024 inches overall length and 0.177 inches diameter

Compatibility

Designed as a standard crimp-on butt splice for stranded or solid copper conductors in the 0.50 to 1.50 square millimeter wire size range, consistent with typical 22 to 16 AWG equivalent applications.

Installation Notes

Installation is performed by licensed electricians or qualified low-voltage technicians. De-energize and lockout the circuit before making any wire terminations, following NFPA 70 (NEC) lockout/tagout requirements. Use a ratcheting crimp tool rated for insulated nylon terminals to achieve a proper crimp — do not use pliers or non-rated tools, as an improper crimp can result in a high-resistance joint or pulled-out conductor. Verify the finished splice for firm seating and inspect the nylon insulation for cracks or splits before returning the circuit to service.
