Value Collection VT1401PS Set Screw M20 X 2.50 Cone Point

Product Description

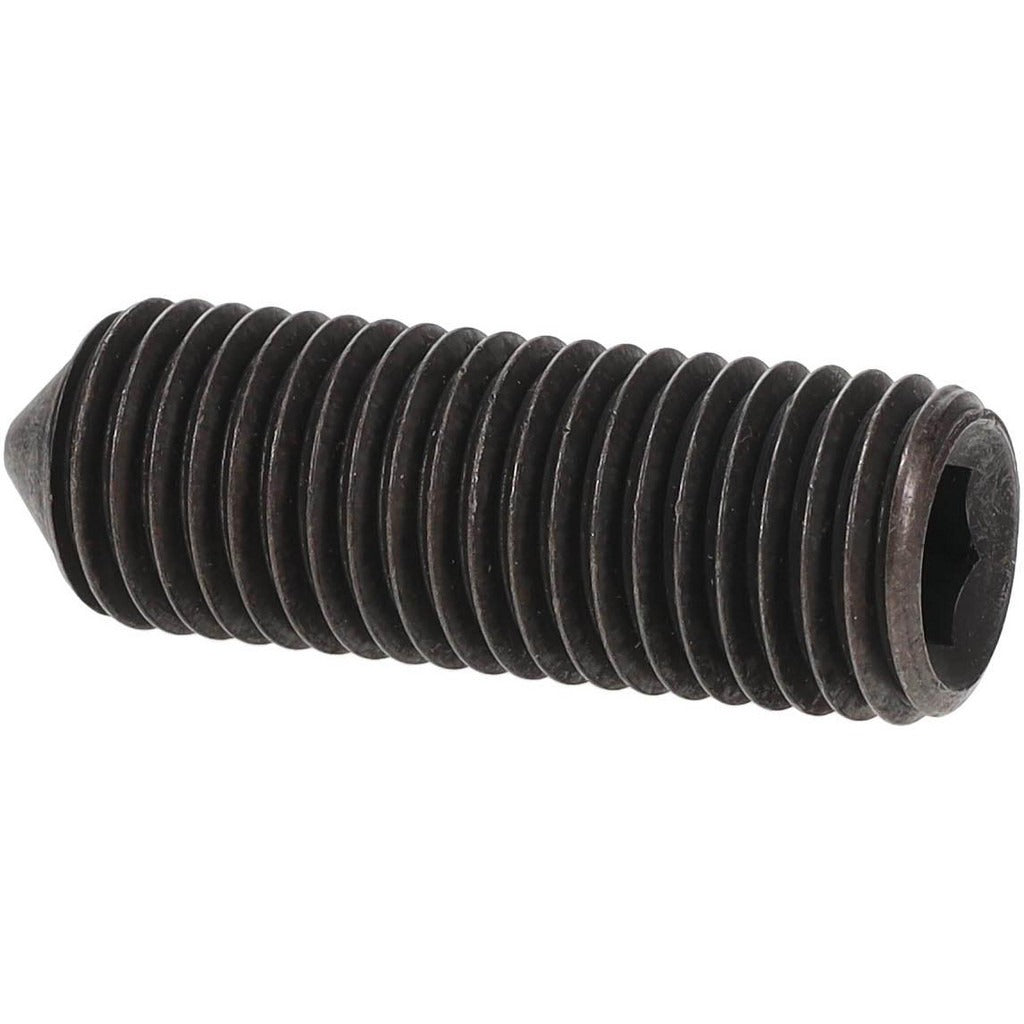

The VALUE COLLECTION VT1401PS is an M20 x 2.50 x 60 mm cone point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws of this type are fully threaded fasteners with no head, driven entirely below the surface of the mating part to lock a component in place against a shaft or bore. The cone point geometry concentrates clamping load into a small contact area, making it well suited for permanent or semi-permanent assemblies where shaft marking is acceptable. A black oxide finish provides mild corrosion resistance and reduces surface reflectivity. This fastener is driven with a 10 mm hex key and conforms to DIN 914 and ISO 4027 standards.

This set screw is used in industrial, mechanical, and maintenance applications where a shaft-mounted component such as a gear, pulley, collar, or cam must be secured against rotation or axial movement. The M20 x 2.50 thread size and 60 mm overall length make it appropriate for medium-to-heavy-duty assemblies. It is installed by machinists, millwrights, and maintenance technicians across general manufacturing, power transmission, and equipment repair environments.

Key Features

• M20 x 2.50 metric thread with 60 mm overall length per DIN 914 and ISO 4027
• Cone point geometry for concentrated clamping force and positive shaft engagement
• Alloy steel construction rated to Grade 14.9 (45H) for high tensile and proof load capacity
• Black oxide finish for mild corrosion resistance and reduced galling tendency
• Internal hex drive accepts a 10 mm hex key for installation in recessed or flush applications
• Fully headless design seats below the work surface to eliminate snag hazards

Compatibility

Designed as a standard DIN 914 and ISO 4027 compliant cone point set screw for use in any M20 x 2.50 threaded hole requiring a headless fastener with cone point engagement.

Installation Notes

Installation is performed with a 10 mm hex key torqued to the fastener manufacturer or equipment OEM specification. Verify that the mating threaded hole is clean and free of debris before threading the screw. Always de-energize and lock out equipment before accessing rotating assemblies. Cone point set screws are not recommended for applications requiring frequent removal, as the point may deform the shaft surface over repeated cycles.
