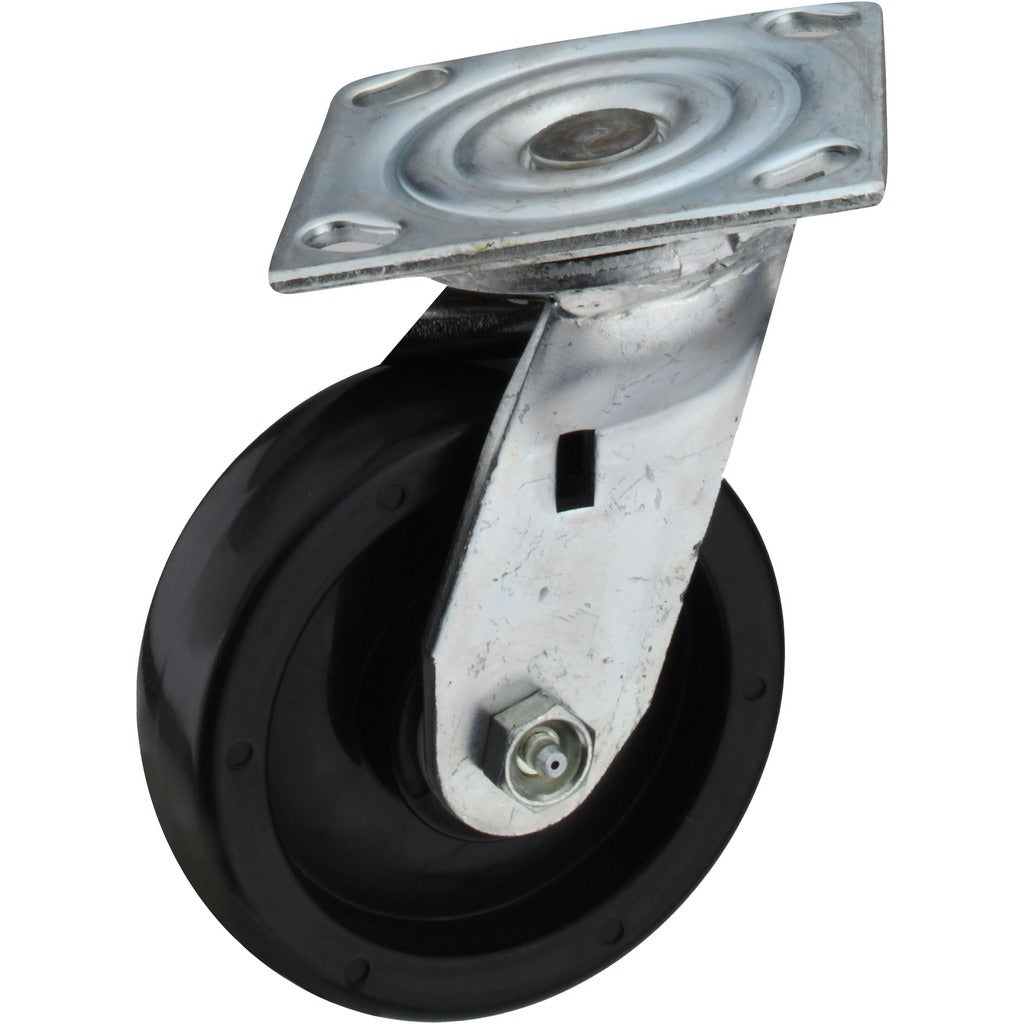

Value Collection V16PB05151S Swivel Top Plate Caster 550 Lb

Product Description

The VALUE COLLECTION V16PB05151S is a swivel top plate caster designed for industrial and commercial material handling applications. It features a 5-inch diameter polyolefin wheel with a 1.5-inch width, mounted on a stamp-formed steel frame with a zinc finish. The swivel design allows 360-degree rotation, making it well suited for carts, racks, shelving units, and mobile equipment where maneuverability is required. With a 550-pound load capacity and a Delrin bearing, this caster delivers smooth rolling performance under heavy loads. Licensed technicians, maintenance crews, and facilities personnel are the typical installers.

This caster is built for material handling environments including warehouses, manufacturing floors, distribution centers, and maintenance facilities. The top plate mount measures 4 inches wide by 4.5 inches long, providing a stable bolt-on attachment to carts, dollies, platforms, and similar equipment. The overall assembly height is 6.5 inches, which must be accounted for when specifying total equipment clearance height. The polyolefin wheel and zinc-finished frame hold up well in dry indoor environments where moderate floor protection and load-bearing strength are both priorities.

Key Features

• 550-pound load capacity suitable for heavy-duty material handling use
• 5-inch polyolefin wheel provides durable rolling performance on smooth and semi-smooth surfaces
• Delrin bearing supports smooth swivel rotation under load
• Stamp-formed construction with zinc finish for corrosion resistance in dry environments
• Top plate mount measures 4 inches by 4.5 inches for secure bolted installation
• 6.5-inch overall assembly height for consistent equipment clearance planning

Compatibility

Designed as an OEM-style replacement or new-installation swivel caster for material handling carts, platforms, dollies, and mobile equipment requiring a top plate mount with a 5-inch wheel.

Installation Notes

Installation is typically performed by maintenance technicians or facilities personnel using standard hand tools. Ensure the mounting surface is flat and that all four bolt holes align with the 4-inch by 4.5-inch plate pattern before fastening. Verify that the combined load across all casters does not exceed the rated per-caster capacity before putting equipment into service. Follow applicable facility safety and equipment manufacturer guidelines when retrofitting or replacing casters on existing mobile equipment.
