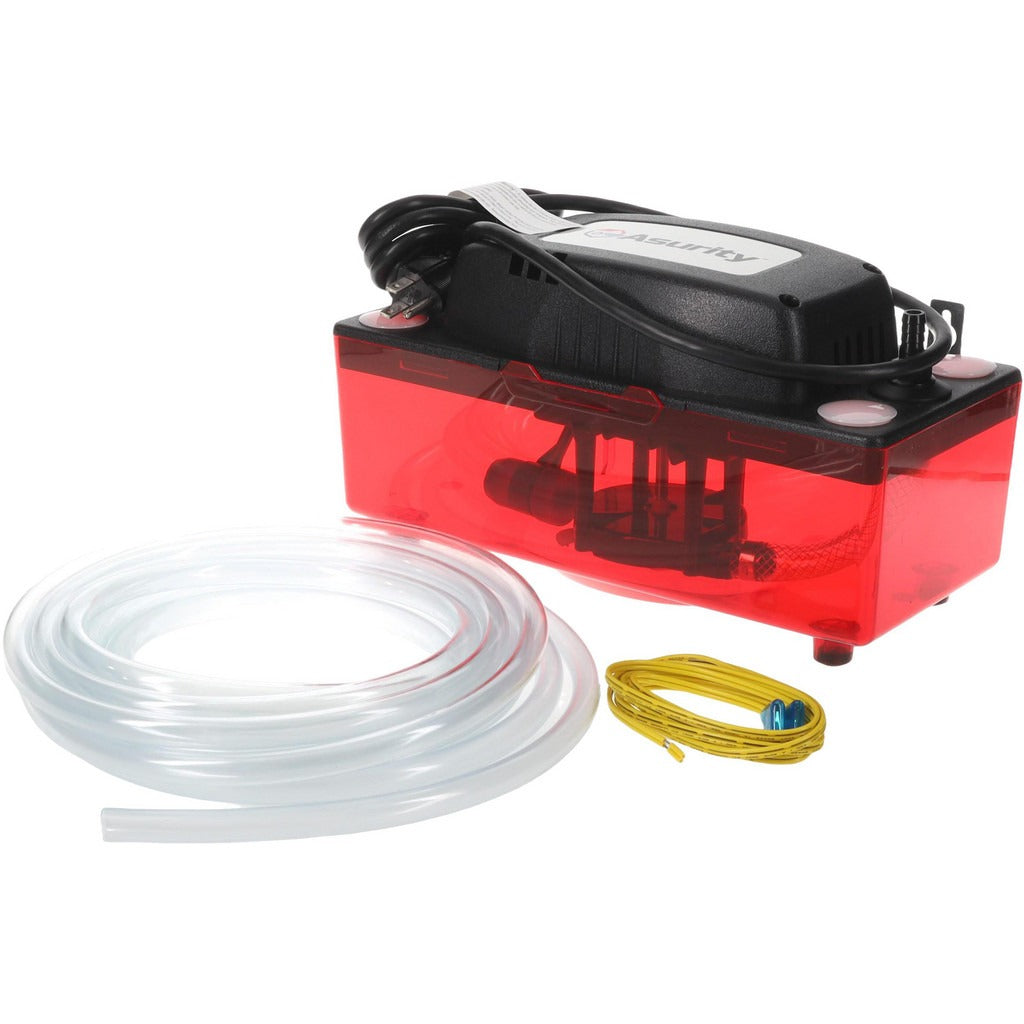

Value Collection ULTRACP-22T Condensate Pump 1/2 Gal 115V

Product Description

The VALUE COLLECTION ULTRACP-22T is an electronic condensate pump designed to remove condensate drainage from HVAC equipment, mini-splits, fan coils, and similar cooling or heating systems. Operating at 115 volts, it features a 1/2-gallon tank capacity and a 3/8-inch barbed outlet connection. The pump delivers 80 gallons per hour at 1 foot of head, making it well suited for standard residential and light commercial condensate removal applications. Licensed HVAC technicians and refrigeration mechanics typically install this unit as part of a complete condensate management system.

The ULTRACP-22T is intended for use in residential and light commercial HVAC installations where gravity drainage is not feasible. Common applications include wall-mounted mini-split systems, ceiling cassette units, air handlers, and packaged terminal air conditioners. It is typically mounted near the indoor unit and connected to the condensate drain pan outlet, then plumbed to an appropriate discharge point such as a floor drain or utility sink.

Key Features

• Electronic condensate pump design for reliable automatic condensate removal
• 1/2-gallon tank capacity handles typical residential condensate volumes
• 115-volt operation compatible with standard single-phase power circuits
• 3/8-inch barbed outlet for straightforward tubing connection
• Flow rate of 80 gallons per hour at 1 foot of head

Compatibility

Designed as an OEM-style replacement or new-install condensate pump for residential and light commercial HVAC systems requiring electronic condensate removal with a 115-volt power supply and a 3/8-inch barbed discharge connection.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the indoor unit before making any wiring connections to the pump. Ensure the discharge tubing is routed with adequate slope to the drain point and is free of kinks or low spots that could restrict flow. Follow applicable local mechanical codes and manufacturer guidelines for condensate disposal requirements.
