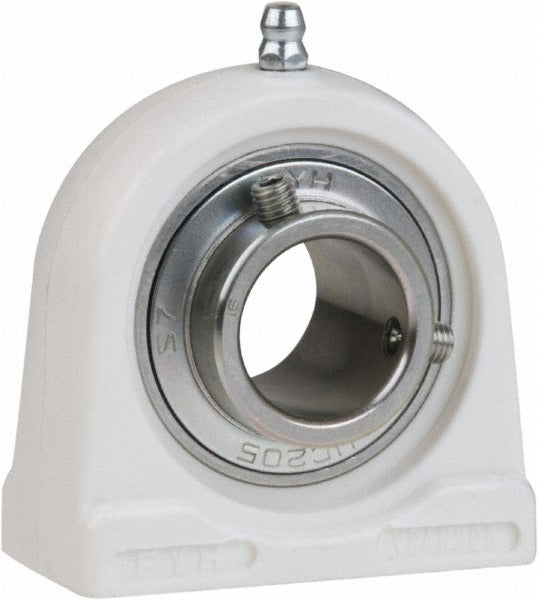

Value Collection UCPAN20620S7PL Tapped Base Pillow Block

Product Description

The VALUE COLLECTION UCPAN20620S7PL is a tapped base pillow block unit designed to support rotating shafts in light to medium-duty industrial and mechanical applications. It features a 1-1/4 inch inner diameter bore and is constructed from thermoplastic, making it suitable for environments where corrosion resistance or reduced weight is a priority. The unit provides a 2,540 pound static load capacity and a 4,383 pound dynamic load capacity, giving installers the performance data needed to verify fitment for the application. Overall length is 4 inches and overall height is 3-5/16 inches.

This pillow block is used in conveyor systems, agricultural equipment, food processing lines, and general machinery where shaft support is required at fixed mounting points. The tapped base design allows for direct bolt-down installation to equipment frames or mounting surfaces. With a 3 inch distance between mounting hole centers and a base-to-center height of 1-11/16 inches, it fits standard mounting patterns common in light industrial assemblies. Mechanical contractors, millwrights, and maintenance technicians are the typical installers for this type of unit.

Key Features

• 1-1/4 inch bore ID for direct shaft fitment without adapter sleeves
• 2,540 pound static load capacity and 4,383 pound dynamic load capacity
• Thermoplastic housing offers corrosion resistance in wet or chemically active environments
• Tapped base design for secure bolt-down mounting
• 3 inch mounting hole center spacing fits common equipment frames
• Compact profile at 4 inches OAL and 3-5/16 inches OAH suits tight installation spaces

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block for machinery requiring a 1-1/4 inch bore tapped base mount with standard 3 inch hole center spacing.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance technician. Shut down and lock out all power to the machine before removing the existing bearing unit or installing this block. Verify shaft diameter and alignment before final torquing of mounting fasteners. Do not operate the unit beyond its rated static or dynamic load capacity.
