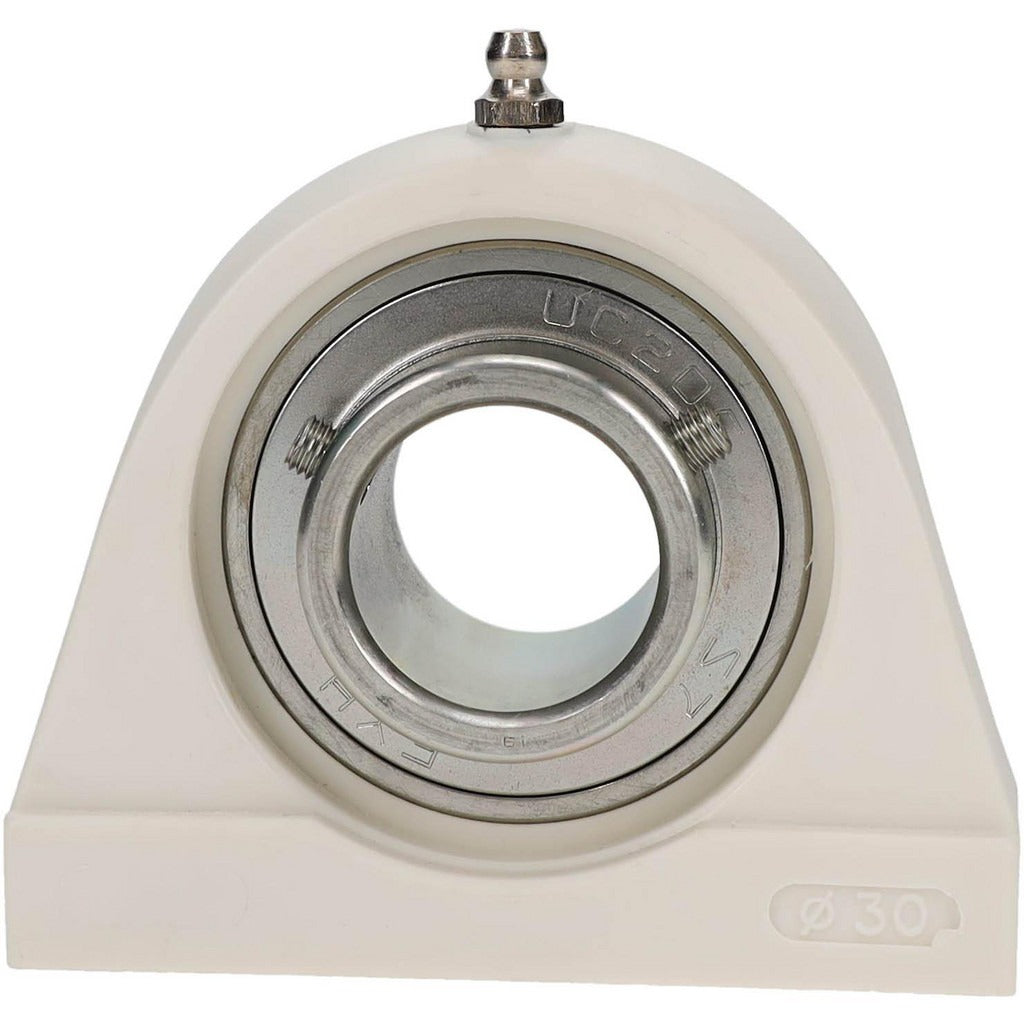

Value Collection UCPAN20619S7PL Tapped Base Pillow Block

Product Description

The VALUE COLLECTION UCPAN20619S7PL is a tapped base pillow block bearing unit designed for light-to-medium duty shaft support applications. It features a 1-3/16 inch (1.1875 inch decimal) bore, an overall length of 4 inches, and an overall height of 3-5/16 inches. The housing is constructed from thermoplastic, making it suitable for corrosion-resistant environments where metal housings are not ideal. Locking is accomplished via set screw. The unit carries a static load capacity of 2,540 pounds and a dynamic load capacity of 4,383 pounds, making it appropriate for moderate radial load service. Maintenance technicians and millwrights install this type of bearing unit during conveyor, material handling, and light industrial equipment builds or rebuilds.

This pillow block bearing is used in residential and light commercial equipment where a tapped mounting base simplifies installation. Typical applications include conveyor frames, fan shaft support, agricultural equipment, and general industrial machinery. The thermoplastic housing is well suited for wet or corrosive environments where cast iron would degrade. The set screw locking mechanism holds the shaft securely in fixed-position mounting configurations. The base-to-center height of 1-11/16 inches (1.6875 inches decimal) and the 3-inch mounting hole center distance allow straightforward layout and alignment on standard equipment frames.

Key Features

• 1-3/16 inch bore with 2.4410 inch outside diameter for standard shaft fitment
• Thermoplastic housing provides resistance to corrosion and moisture
• Set screw locking type for positive shaft retention
• 2,540 pound static load capacity and 4,383 pound dynamic load capacity
• 3-inch distance between mounting hole centers for easy frame layout
• 1-11/16 inch base-to-center height supports consistent shaft alignment

Compatibility

Designed as an OEM-style replacement or new-installation tapped base pillow block bearing for conveyor, fan, and general industrial shaft support applications requiring a 1-3/16 inch bore and a thermoplastic housing.

Installation Notes

Installation should be performed by a qualified millwright or maintenance technician. Power down and de-energize all equipment before mounting or removing bearing units. Ensure the mounting surface is flat and clean before torquing fasteners to prevent housing distortion. Set screws should be tightened against a clean, properly sized shaft; do not install on an undersized or worn shaft.
