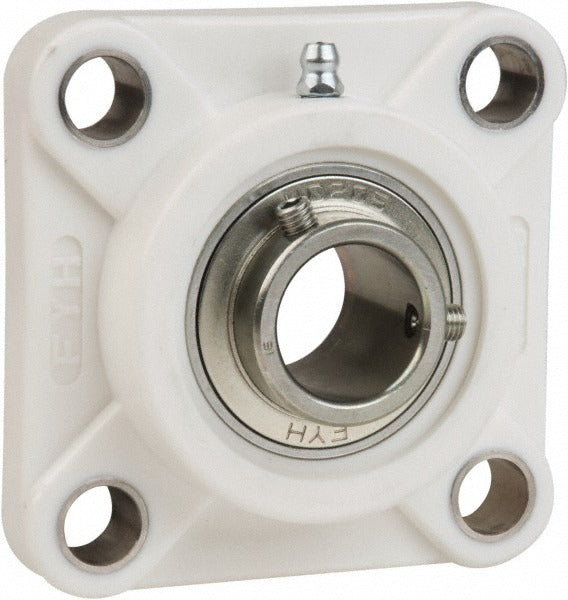

Value Collection UCF20620ES7PL 4-bolt Flange Bearing

Product Description

The VALUE COLLECTION UCF20620ES7PL is a 4-bolt flange mounted bearing designed for shaft support in industrial and mechanical power transmission applications. It accepts a 1-1/4 inch inner diameter shaft and measures 4-7/32 inches overall length by 1-5/8 inches overall height. The thermoplastic housing offers corrosion resistance in environments where standard cast iron is unsuitable. Static load capacity is 2,540 pounds and dynamic load capacity is 4,383 pounds, making it suitable for moderate-load rotating equipment. Maintenance technicians, millwrights, and industrial mechanics install this type of bearing on conveyors, fans, augers, and similar driven machinery.

This flange bearing is suited for light-to-medium duty industrial equipment in manufacturing, agricultural, and material handling settings. The 4-bolt mounting pattern provides a secure, stable footprint on mounting surfaces. The thermoplastic housing makes it a practical choice in wet, corrosive, or food-adjacent environments where metal housings may deteriorate. Mounting hole center-to-center distance is 3-17/64 inches, and base-to-center height is 3/4 inch, simplifying layout and alignment during installation.

Key Features

• 1-1/4 inch inner diameter shaft bore for direct shaft mounting
• Static load capacity of 2,540 pounds and dynamic load capacity of 4,383 pounds
• Thermoplastic housing resists corrosion in wet or chemically active environments
• 4-bolt flange pattern with 3-17/64 inch mounting hole center distance for stable installation
• 3/4 inch base-to-center height for consistent alignment with standard mounting surfaces
• Compact overall envelope: 4-7/32 inches OAL by 1-5/8 inches OAH

Compatibility

Designed as a standard 4-bolt flange mounted bearing replacement for light-to-medium duty rotating shaft applications requiring a 1-1/4 inch bore and thermoplastic housing.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power to the equipment before removing or installing the bearing. Align the shaft carefully before tightening fasteners to avoid preloading the bearing and reducing service life. Verify that the mounting surface is flat and clean to ensure full contact across all four bolt positions.
