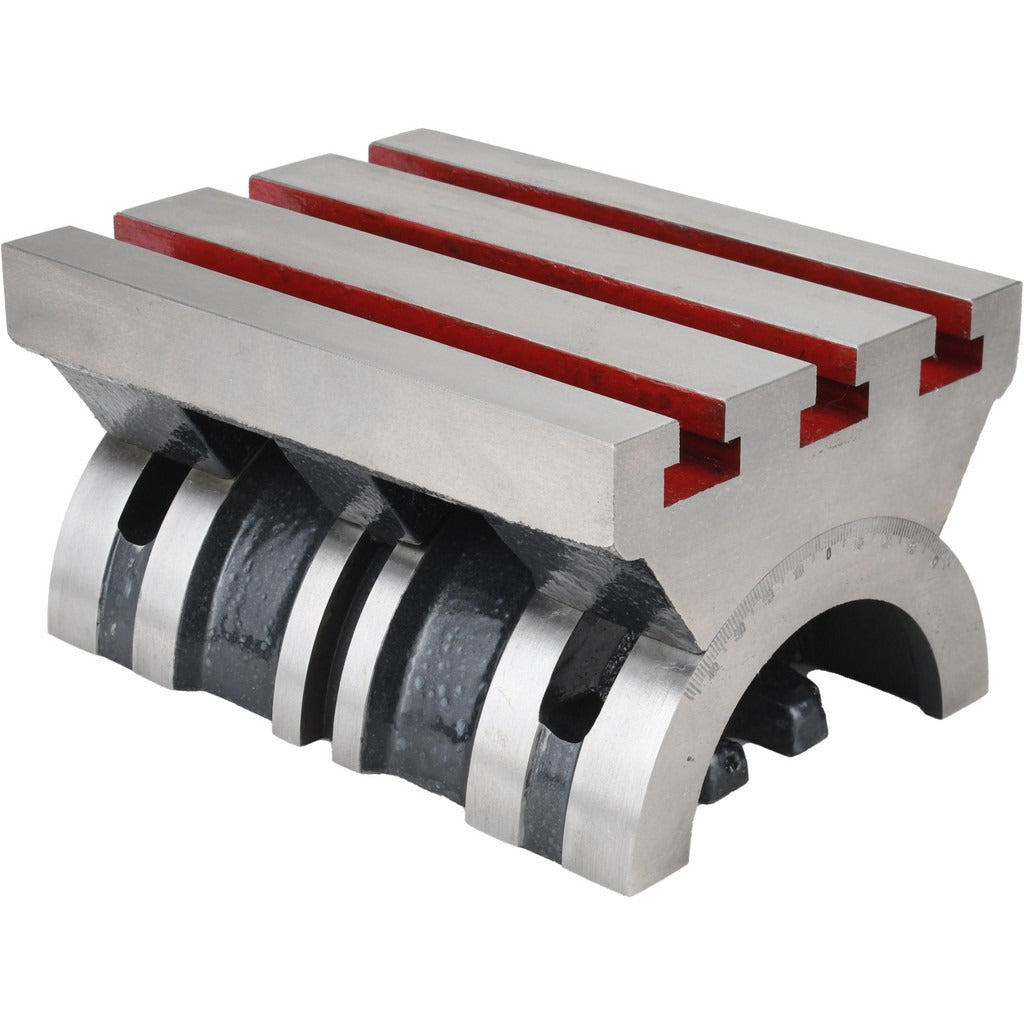

Value Collection TT/5 Tilting Table 7x5x3-3/4 in 44 Lb

Product Description

The VALUE COLLECTION TT/5 is a precision tilting table designed for use with drill presses, milling machines, and similar machining equipment. It provides adjustable angular positioning from -45 to 45 degrees, allowing operators to drill, mill, or bore workpieces at compound angles without repositioning the machine. The table measures 7 inches in length by 5 inches in width by 3-3/4 inches in overall height and has a maximum load capacity of 44 pounds. The T-slot width of 7/16 inches accommodates standard T-slot bolts and clamps for secure workpiece fixturing. This unit weighs 20 pounds and is suited for shop-floor use by machinists and toolroom technicians.

The TT/5 tilting table is intended for use on benchtop and floor-model drill presses and vertical milling machines in industrial, production, and job-shop environments. It is well-suited for tasks that require repeatable angular setups on metal, wood, or composite workpieces. The T-slot design allows standard work-holding hardware to be used directly on the table surface. This table does not swivel, so angular adjustment is limited to the tilt axis only.

Key Features

• Tilt range of -45 to 45 degrees for versatile angular workpiece positioning
• Table surface measures 7 inches long by 5 inches wide
• Maximum load capacity of 44 pounds supports a wide range of workpieces
• 7/16 inch T-slot width accepts standard T-slot clamping hardware
• Overall height of 3-3/4 inches keeps the work surface close to the machine table
• No-swivel design provides a stable, single-axis tilt platform

Compatibility

Designed as a general-purpose tilting table for use with drill presses and vertical milling machines that accept standard machine table accessories with 7/16 inch T-slot hardware.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Power down and lock out the machine before mounting or repositioning the tilting table. Secure the table to the machine table using appropriately rated T-slot bolts and clamps before applying any load or operating the machine. Verify that the tilt angle is locked firmly before beginning any cutting operation.
