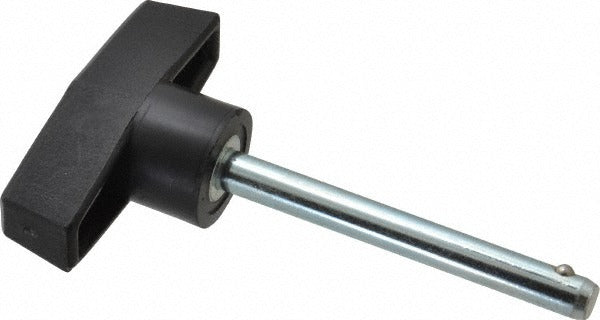

Value Collection TQRP-1006- G Quick-release T-handle Pin

Product Description

The VALUE COLLECTION TQRP-1006- G is a quick-release T-handle pin designed for fast, tool-free removal and installation in mechanical assemblies, jigs, fixtures, and equipment panels. The pin body is C1010/C1022 steel with a zinc-plated finish for basic corrosion resistance. It measures 0.25 inches in pin diameter with a usable length of 2.25 inches and an overall length of 2.25 inches. The T-handle is molded plastic for a secure, comfortable grip. A stainless steel ball detent provides the locking and release mechanism. Maintenance technicians, machine operators, and fabricators commonly use this type of pin where repeated access is required without tools.

This quick-release pin is suited for light-duty to medium-duty applications including equipment access panels, guard retention, jig and fixture alignment, and hinge pinning on service equipment. The zinc-plated steel construction makes it appropriate for indoor and sheltered environments. It is sold individually and is compatible with standard clevis and lug arrangements that accept a 0.25-inch pin diameter.

Key Features

• Tool-free operation via ball-detent quick-release mechanism
• Pin diameter: 0.25 inches; usable length: 2.25 inches; overall length: 2.25 inches
• Pin body: C1010/C1022 steel with zinc-plated finish for corrosion resistance
• Stainless steel ball detent for reliable locking and positive retention
• Plastic T-handle for easy hand grip and quick actuation
• Sold as a single unit; no minimum order beyond one piece

Compatibility

Designed for use in standard clevis, lug, and bracket arrangements that accept a 0.25-inch diameter quick-release pin with a 2.25-inch usable length.

Installation Notes

Power down or de-energize any equipment before servicing pinned guards, panels, or assemblies. Verify that the receiving holes are clean and properly aligned before inserting the pin to avoid damaging the ball detent. Inspect the detent ball and spring action before each use to confirm positive retention. This pin is intended for mechanical retention duty and should not be used as a structural shear pin in high-load or dynamic-load applications without engineering review.
