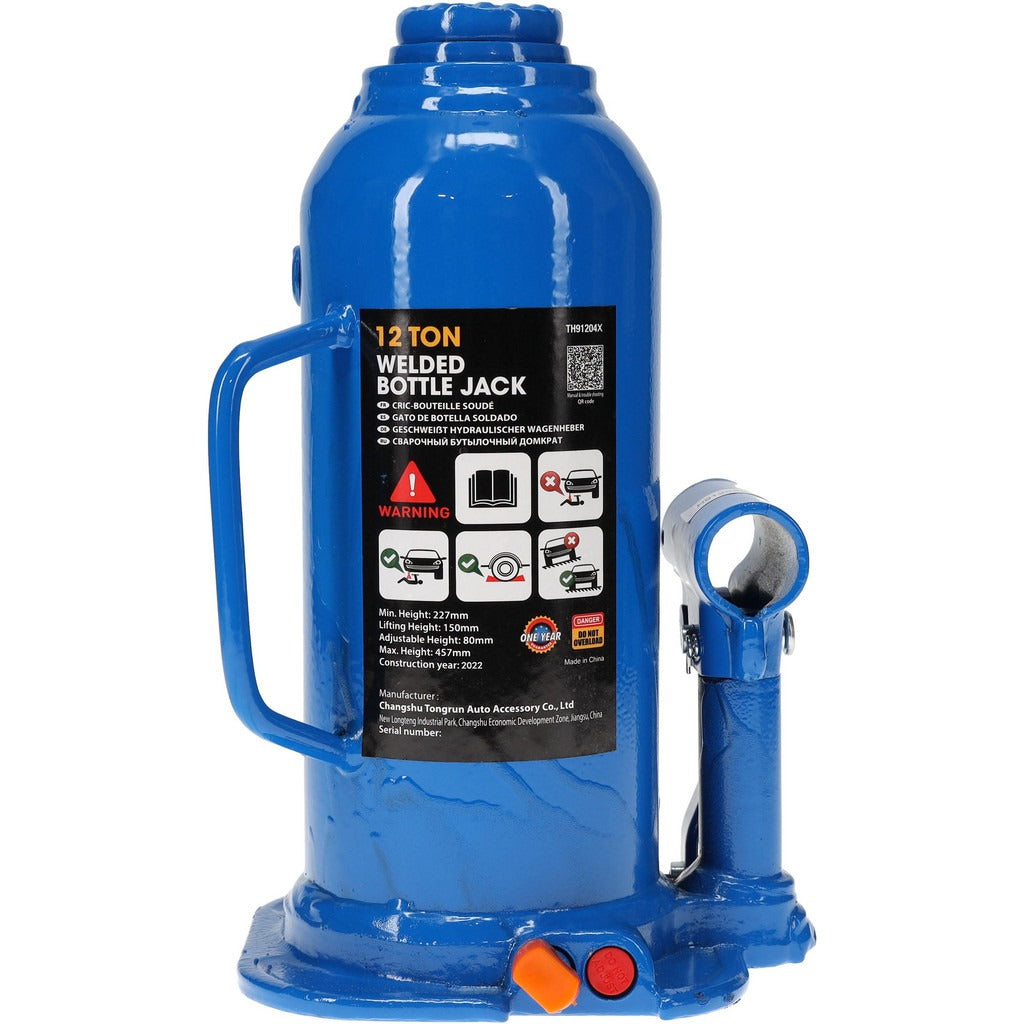

Value Collection TH91204X Side Pump Bottle Jack 12 Ton

Product Description

The VALUE COLLECTION TH91204X is a 12-ton capacity side pump bottle jack designed for heavy-duty lifting in automotive, industrial, and shop environments. The side-mounted pump handle allows operation in tight spaces where a standard center-pump jack cannot reach. The unit extends from a minimum height of 9.5 inches to a maximum height of 18.625 inches, giving a 6-inch piston stroke. An additional screw extension of 3.125 inches with a 1.1875-inch diameter adds fine height adjustment at the top of the lift range. Mechanics, fleet technicians, and industrial maintenance personnel are the typical operators of this tool.

This bottle jack suits residential garage use, fleet service bays, fabrication shops, and light industrial maintenance. It is appropriate for lifting vehicles, machinery, and structural loads up to 12 tons when used on a stable, level surface. The side pump design is particularly useful for low-clearance applications where the pump handle must clear obstructions on one side of the jack body.

Key Features

• 12-ton load capacity for heavy vehicle and industrial lifting applications
• Side pump design enables operation in confined or low-clearance spaces
• 6-inch piston stroke for substantial lift range within a compact footprint
• Screw extension adds 3.125 inches of adjustable height beyond piston travel
• Wide base at 5.25 inches long by 5.125 inches wide provides stable footing on shop floors
• Plunger diameter of 1.73 inches supports rated load capacity

Compatibility

Designed as a general-purpose side pump bottle jack suitable for automotive, fleet, and light industrial lifting applications requiring up to 12-ton capacity and a minimum working height of 9.5 inches.

Installation Notes

Always position the jack on a firm, level surface and confirm the load does not exceed the rated 12-ton capacity before lifting. Support the raised load with rated jack stands before performing any work underneath. Inspect the jack for hydraulic leaks, damage, or deformation before each use and remove it from service if any defect is found. Follow all applicable OSHA and workplace safety requirements for lifting and supporting heavy loads.
