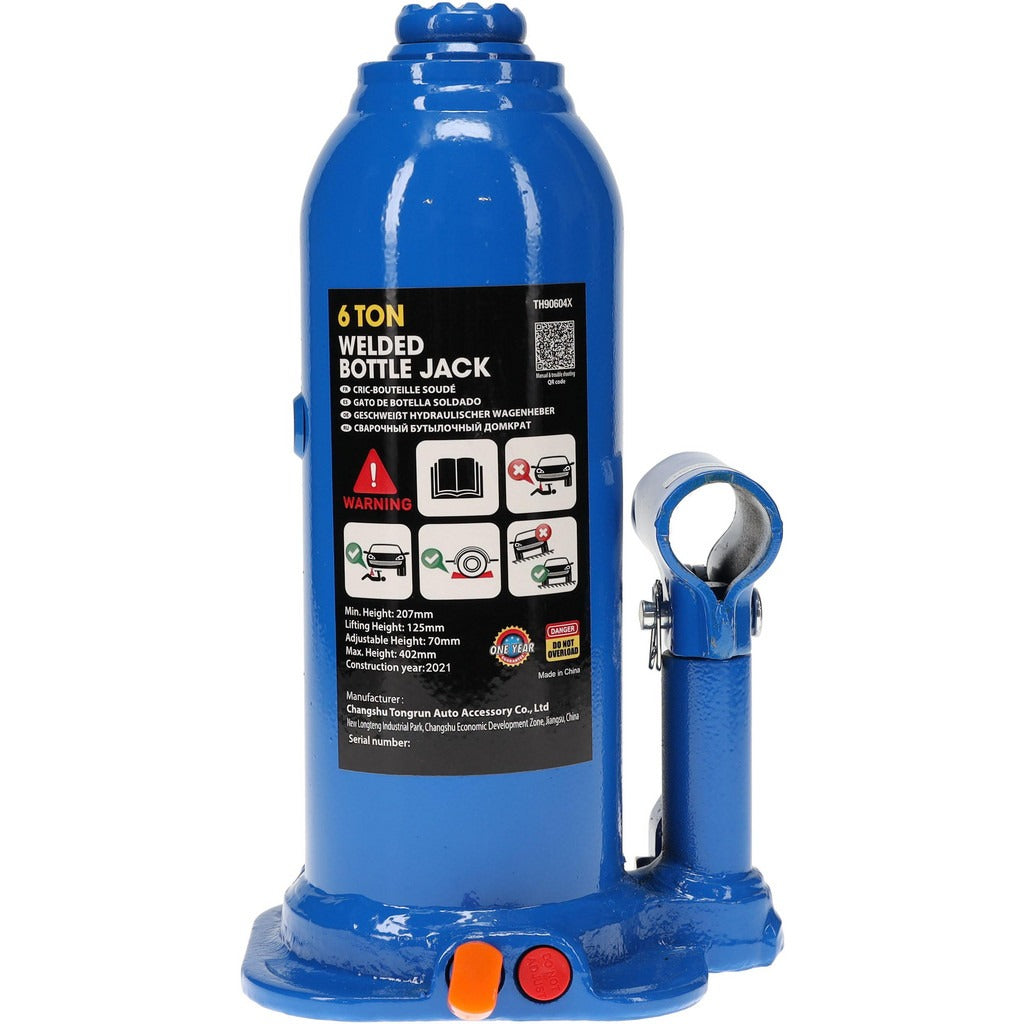

Value Collection TH90604X Side Pump Bottle Jack 6 Ton

Product Description

The VALUE COLLECTION TH90604X is a 6-ton capacity side pump bottle jack designed for heavy lifting in automotive, fleet, and industrial maintenance applications. The side-mounted pump handle allows operation in tight spaces where a standard top-pump jack cannot be used. It extends from a minimum height of 8.5 inches to a maximum height of 16.625 inches, giving a total piston stroke of 5.25 inches. The adjustable screw extension adds 2.875 inches of additional reach. At 10.6 pounds, this jack is portable enough for field use while delivering the load capacity needed for light trucks, trailers, and shop equipment. Automotive technicians and industrial maintenance crews are the primary users.

This jack is suited for residential garage use, mobile repair operations, and light industrial maintenance settings. The side pump configuration makes it practical for low-clearance vehicles or confined underbody work areas where vertical pump clearance is restricted. The wide 4.375-inch by 4-inch base provides stable footing on shop floors and level service surfaces. The 1.3-inch plunger diameter and 0.8125-inch screw diameter are sized for the rated 6-ton load range.

Key Features

• 6-ton load capacity suitable for light trucks, trailers, and shop equipment
• Side pump design allows use in confined spaces with limited overhead clearance
• 8.5-inch minimum height to 16.625-inch maximum height lift range
• 5.25-inch piston stroke with an additional 2.875-inch screw extension
• 4.375-inch by 4-inch base for stable footing on flat surfaces
• Compact and portable at 10.6 pounds

Compatibility

Designed as a general-purpose side pump bottle jack for use with vehicles and equipment within the 6-ton rated load capacity and within the 8.5-inch to 16.625-inch height range.

Installation Notes

Always position the jack on a firm, level surface before lifting. Never exceed the rated 6-ton load capacity. Engage the load on the saddle or screw pad only — never place any part of your body under an unsupported load. Follow all applicable workplace safety regulations and manufacturer lifting guidelines when using hydraulic jacks.
