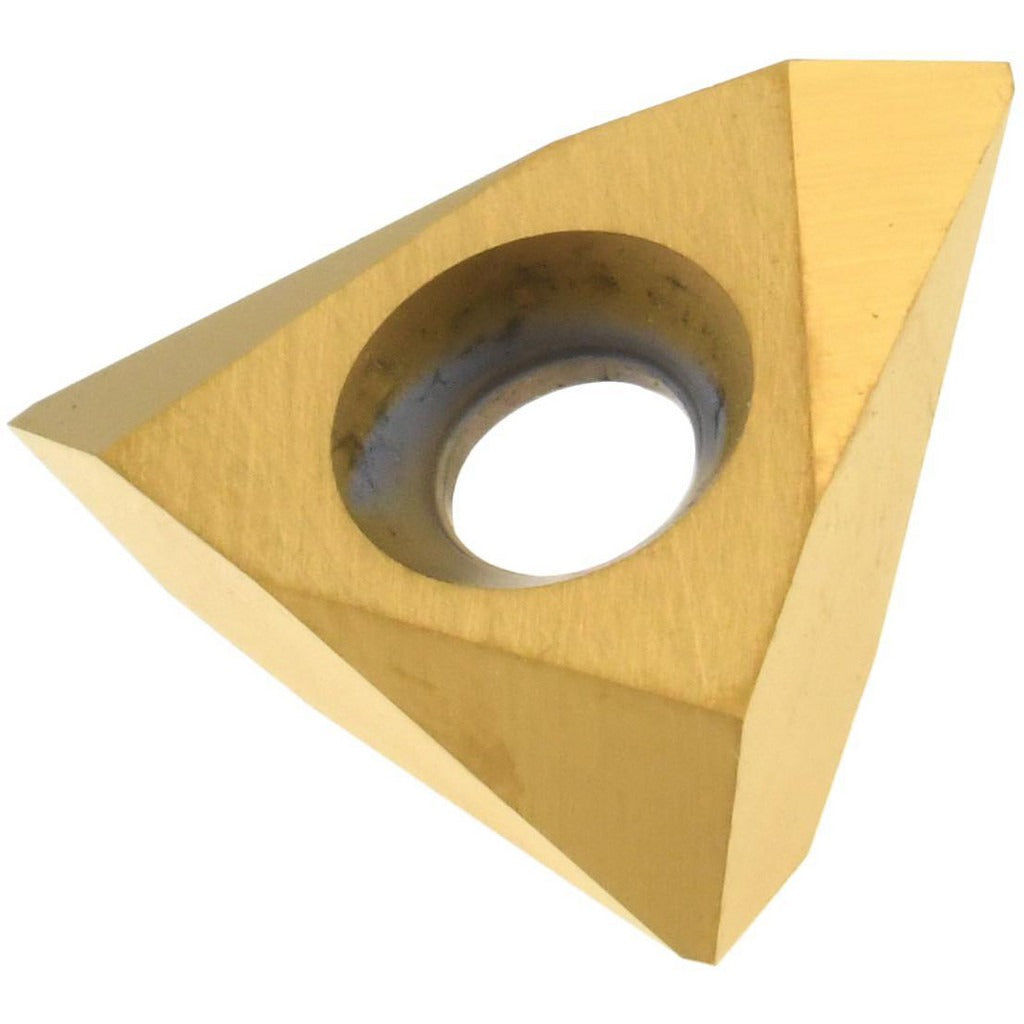

Value Collection TCN36240E Threading Insert 60V 1/2 in Ic

Product Description

The VALUE COLLECTION TCN36240E is a solid carbide on-edge threading insert designed for external and internal thread-cutting operations on CNC lathes and threading toolholders. It produces 60-degree V-form threads and features a PVD titanium nitride (TiN) coating applied over a submicron-grade carbide substrate. The TiN finish increases surface hardness and reduces tool wear during high-speed threading passes. With a 1/2-inch inscribed circle and a thickness of 0.1875 inches, this insert fits standard TNMC-style toolholders. It carries the manufacturer grade designation TCN55 and is suitable for threading steel, alloy steel, and similar machinable metals.

This insert is used in production and job-shop turning applications where consistent thread form and tool life are required. On-edge threading inserts are commonly used on CNC turning centers and manual lathes for threading operations on shafts, fittings, and threaded fastener components. The 60-degree V thread standard covers the most widely used thread forms in both inch and metric fastener applications. Machinists and CNC operators in metalworking, aerospace, and general manufacturing environments are the primary users of this insert type.

Key Features

• 60-degree V thread form for standard inch and metric threading applications
• Solid carbide submicron-grade substrate for extended tool life in steel and alloy materials
• PVD TiN coating increases surface hardness and reduces heat buildup at the cutting edge
• TNMC insert style with 1/2-inch inscribed circle for compatibility with standard on-edge toolholders
• 0.2040-inch hole diameter for secure mechanical clamping in the toolholder
• Compact 3/16-inch (0.1875-inch) thickness for on-edge seating in dedicated threading blocks

Compatibility

Designed as an OEM-style replacement threading insert for TNMC-style on-edge threading toolholders accepting a 1/2-inch inscribed circle insert with a 0.2040-inch mounting hole.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the turret or toolpost is locked before changing inserts. Use the correct torque-limiting screwdriver or clamping screw tool specified by the toolholder manufacturer to seat the insert securely without cracking the carbide. Inspect the insert pocket and clamping screw for chips or debris before seating a new insert.
