Value Collection TCN35770B Grooving Insert TNMC43 TCN55

Product Description

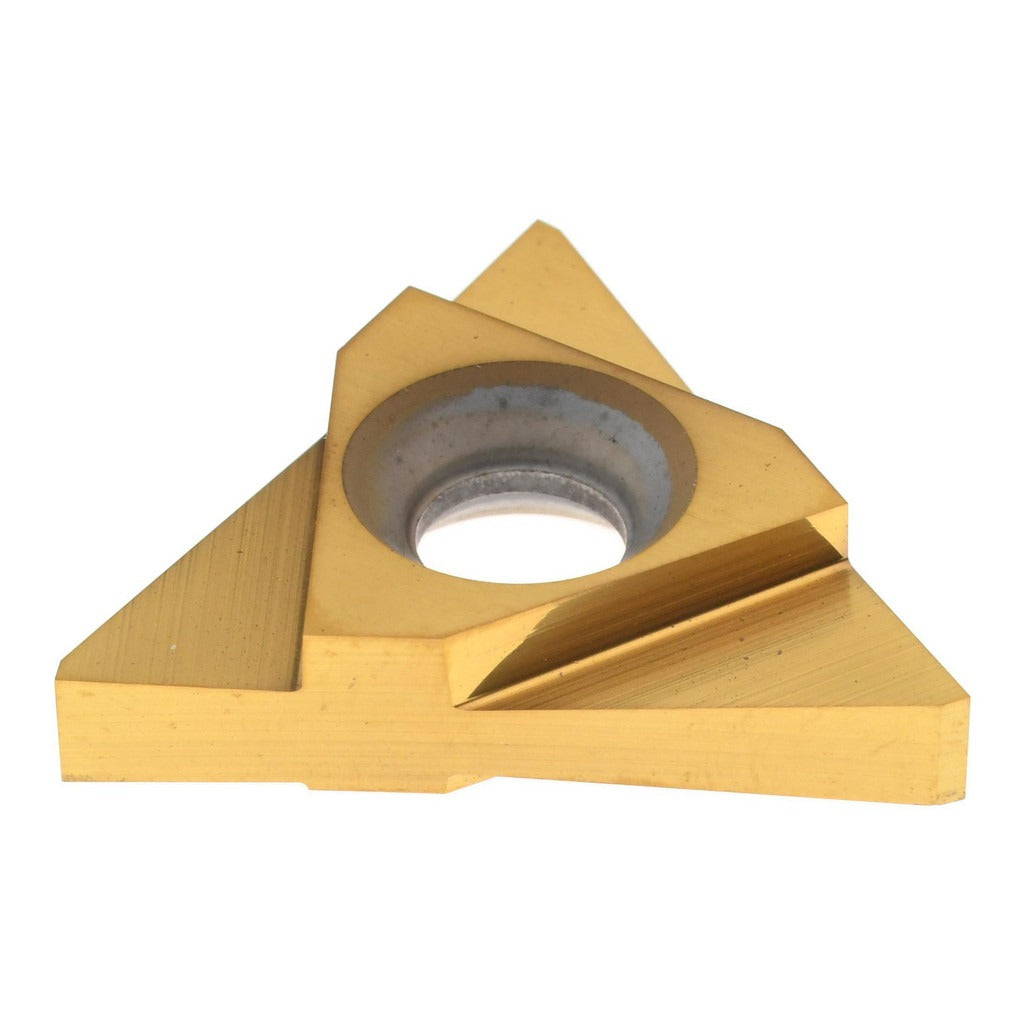

The VALUE COLLECTION TCN35770B is a solid carbide grooving insert designed for precision material removal on CNC lathes and turning centers. Classified under insert style TNMC with a size designation of 43, this insert is configured for right-hand operation and delivers a cutting width of 0.125 inches. The manufacturer grade is TCN55 and the material grade is C5, indicating a general-purpose carbide formulation suited for a range of workpiece materials. Maximum depth of cut reaches 0.204 inches. Machining professionals and CNC operators install this insert as a consumable tooling component in grooving and parting applications.

This insert is intended for grooving operations on turning equipment where a right-hand, TNMC-style insert is required. The TCN55 grade is applicable across a range of ferrous and non-ferrous workpiece materials typical in production machining environments. The 0.125-inch cutting width makes it well suited for narrow groove profiles. The insert fits standard toolholders designed to accept TNMC43 geometry inserts. It is sold individually per package, with a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with TCN55 manufacturer grade and C5 material grade
• TNMC insert style, size 43, right-hand configuration
• Cutting width of 0.125 inches for narrow groove profiles
• Maximum depth of cut of 0.204 inches; rated depth of cut range of 0.200 to 0.300 inches
• Inscribed circle diameter of 1/2 inch
• Single-use insert design; not rated as a multi-use tool

Compatibility

Designed for use in standard TNMC43-style grooving toolholders on CNC lathes and turning centers requiring a right-hand insert configuration.

Installation Notes

Installation is performed by qualified CNC machinists or tooling technicians. Power down and lock out the machine before seating or replacing inserts. Use the appropriate insert clamp and torque wrench as specified by the toolholder manufacturer. Inspect the insert pocket for debris or damage before seating the new insert to ensure proper contact and secure clamping.
