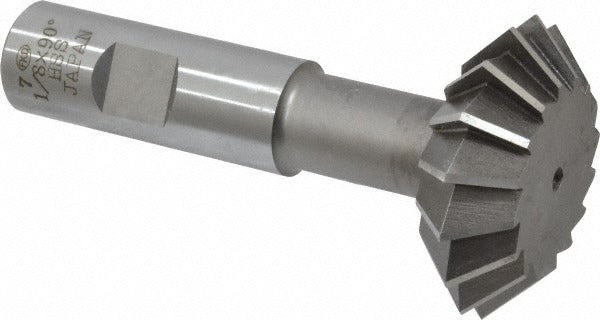

Value Collection SWC1590HS Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION SWC1590HS is a double angle milling cutter designed for machining symmetrical V-grooves, chamfers, and dovetail-adjacent profiles on milling machines. Built from high speed steel (HSS), it operates at a 90-degree included angle with a 1-7/8 inch cutting diameter and a 5/8 inch cutting width. The 3/4 inch shank provides solid, concentric tool holding in standard milling chucks and collets. With a bright, uncoated finish and an overall length of 3-25/32 inches, this cutter suits both manual knee mills and CNC vertical machining centers where HSS tooling is appropriate. Machinists, toolroom operators, and maintenance technicians are the typical users.

This cutter is suited for ferrous and non-ferrous workpieces where a full 90-degree double angle profile is required in a single pass. Typical applications include producing symmetrical V-grooves in fixture plates, chamfering mating edges on structural components, and cutting angular flutes in tooling blanks. It is well matched to lower-speed, higher-feed operations on manual mills and light-duty CNC setups where HSS is preferred over carbide for interrupted cuts or softer materials.

Key Features

• 90-degree included angle for precise symmetrical V-groove and chamfer profiles
• High speed steel construction provides toughness and resistance to chipping on interrupted cuts
• 1-7/8 inch cutting diameter allows sufficient radial engagement for medium-width slots
• 5/8 inch cutting width delivers the full 90-degree profile in a single pass
• Bright, uncoated finish permits easy visual inspection of cutting edges between uses
• 3/4 inch shank diameter fits standard milling arbors and side-lock holders

Compatibility

Designed for use in standard milling machines accepting a 3/4 inch shank diameter toolholder, arbor, or collet chuck. Suitable for vertical and horizontal milling setups where double angle form cutters are specified.

Installation Notes

Installation should be performed by a qualified machinist. Power down and lock out the milling machine spindle before mounting or removing the cutter. Verify shank seating and drawbar or set-screw torque according to the machine manufacturer specifications before engaging the workpiece. Inspect cutting edges for chips or wear before each use, as a damaged edge on a form cutter will transfer the defect directly to the finished profile.
