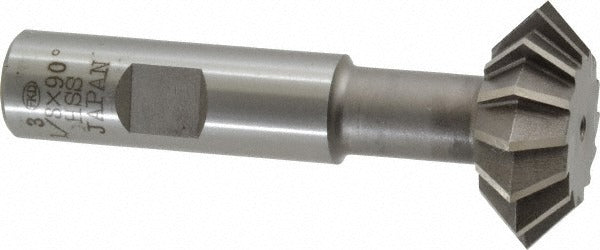

Value Collection SWC1190HS Double Angle Milling Cutter

Product Description

The VALUE COLLECTION SWC1190HS is a double angle milling cutter designed for machining symmetrical V-grooves, chamfers, and angular profiles on milling machines. Built from high speed steel with a bright, uncoated finish, it delivers consistent cutting performance across a range of ferrous and non-ferrous workpiece materials. The included angle is 90 degrees, the cutting diameter is 1-3/8 inches, and the cutting width is 1/2 inch. The 5/8-inch shank provides a secure, low-runout connection in standard end mill holders or collet chucks. Overall length is 3-9/32 inches. This cutter is suited for job shops, tool rooms, and production environments where angular form milling is a routine operation.

This double angle cutter is used wherever a precise 90-degree included angle must be cut into a workpiece in a single pass. Typical applications include milling dovetail lead-ins, deburring chamfers on part edges, producing V-grooves for alignment features, and cutting angular relief profiles. It is installed and operated by machinists and tool-and-die technicians on manual knee mills and CNC vertical machining centers. The shank connection suits standard 5/8-inch end mill holders and collet systems commonly found in machine shops.

Key Features

• 90-degree included angle mills symmetrical V-grooves and chamfers in a single pass
• High speed steel construction provides toughness and resistance to chipping on interrupted cuts
• 1-3/8-inch cutting diameter covers a wide groove width range per pass
• 1/2-inch cutting width keeps axial engagement controlled for stable chip load
• Bright, uncoated finish allows easy visual inspection of cutting edge condition
• 5/8-inch shank diameter fits widely available end mill holders and collet chucks

Compatibility

Designed as a standard shank-style double angle milling cutter for use in manual knee mills and CNC vertical machining centers equipped with a 5/8-inch end mill holder or compatible collet system.

Installation Notes

Installation is performed by a qualified machinist. Power down and lock out the spindle drive before mounting or removing the cutter. Seat the shank fully in the holder and torque the drawbar or set screws according to the machine tool manufacturer's specifications. Verify runout with a dial indicator before taking the first cut, and confirm workpiece fixturing is rigid to prevent chatter at the cutting edge.
