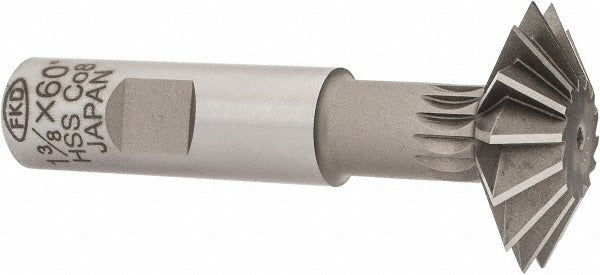

Value Collection SWC1160CO Double Angle Milling Cutter

Product Description

The Value Collection SWC1160CO is a double angle milling cutter ground from cobalt high-speed steel, designed for milling dovetail slots, chamfers, and angular grooves on metalworking mills. It carries a 60-degree included angle, a 1-3/8-inch cutting diameter, and a 7/16-inch cutting width. The 5/8-inch straight shank seats directly into a standard collet or milling chuck. The bright, uncoated finish suits general-purpose ferrous and non-ferrous cutting where a coating is not required. Machinists and tool-and-die technicians use this cutter in manual knee mills and CNC vertical machining centers for precise angle form work.

This cutter is suited for light to medium angular milling operations in job shops, maintenance machining, and production environments. The cobalt construction provides improved heat and wear resistance over standard M2 high-speed steel, making it a practical choice when cutting harder alloy steels or when extended run lengths between regrinds are needed. The 3-7/32-inch overall length provides adequate reach for most standard vise and fixture setups without excessive overhang.

Key Features

• 60-degree included angle for dovetail slots, chamfers, and angular form milling
• Cobalt high-speed steel construction for improved heat resistance versus standard HSS
• 1-3/8-inch cutting diameter with 7/16-inch cutting width
• 5/8-inch straight shank for use with standard collets and milling chucks
• Bright, uncoated finish — suitable for general-purpose ferrous and non-ferrous applications
• 3-7/32-inch overall length provides stable reach in typical vise setups

Compatibility

Designed as a general-purpose double angle milling cutter for use in vertical milling machines and CNC machining centers equipped with a 5/8-inch collet or milling chuck.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. De-energize the spindle and confirm the machine is fully stopped before mounting or removing the cutter. Seat the shank fully into a clean, properly sized collet or end mill holder and torque the retention mechanism per the toolholder manufacturer's specifications. Inspect the cutter for chips or cracks before each use and never exceed the recommended spindle speeds for cobalt HSS tooling in the material being cut.
