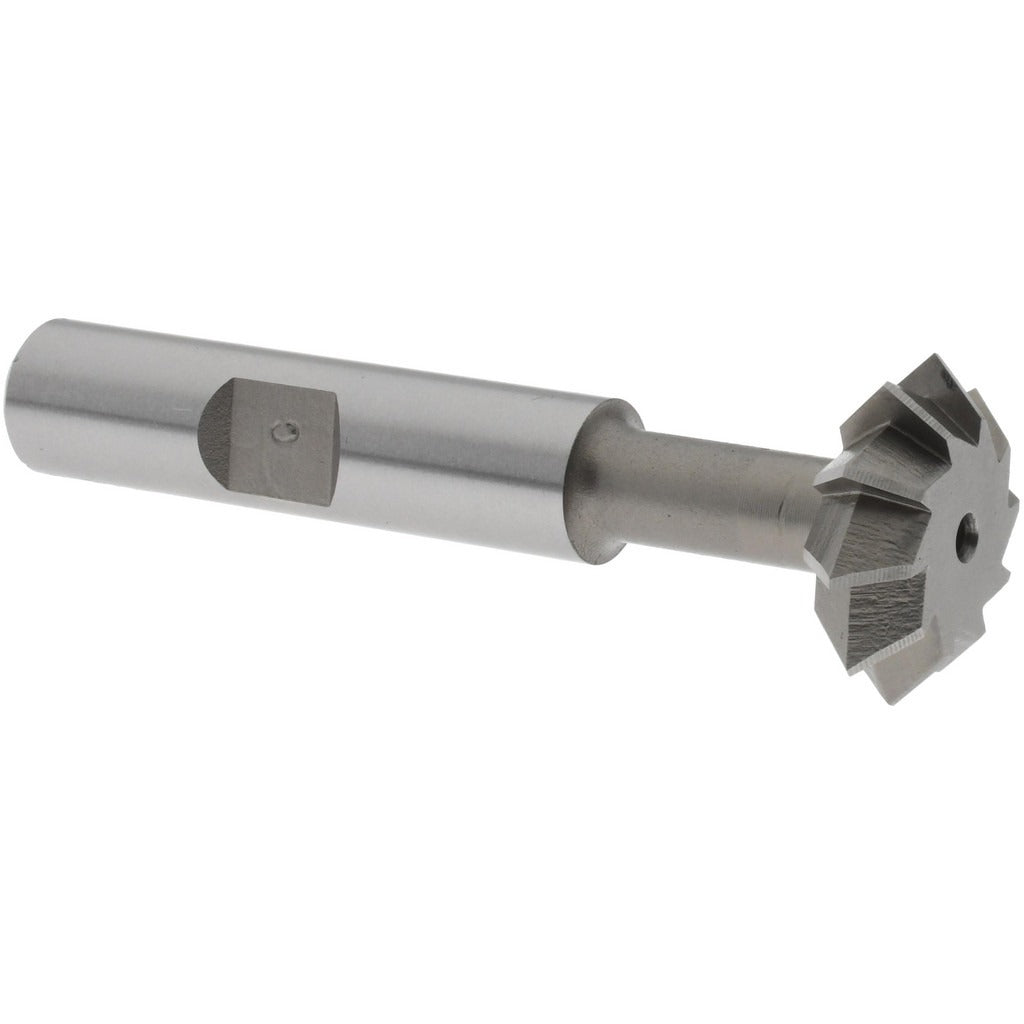

Value Collection SWC0690CO Double Angle Milling Cutter

Product Description

The VALUE COLLECTION SWC0690CO is a double angle milling cutter designed for precision angular slot, chamfer, and groove milling operations on metalworking mills and machining centers. Built from cobalt high-speed steel, this cutter handles tough ferrous and stainless materials that standard HSS tooling struggles with. The included angle measures 90 degrees, the cutting diameter is 3/4 inch, and the cutting width is 1/4 inch. A 3/8 inch straight shank mounts directly into standard collet chucks or end mill holders. The bright, uncoated finish is suited for applications where coating interaction with cutting fluids is a concern. Machinists and tool-and-die tradespeople rely on this geometry for dovetail prep work, V-groove cutting, and angular chamfering passes.

This cutter is intended for use on manual knee mills and CNC vertical machining centers in job shops, maintenance departments, and production environments. With a 3/8 inch shank diameter and a compact 2-7/16 inch overall length, it fits into tight setups where larger tooling creates clearance problems. The 90-degree included angle makes it a direct choice for symmetric V-groove profiles and standard chamfer work on steel, cast iron, and harder non-ferrous alloys.

Key Features

• Cobalt construction for improved heat and wear resistance over standard HSS in harder materials
• 90-degree included angle for symmetric V-groove and chamfer profiles
• 3/4 inch cutting diameter with 1/4 inch cutting width for controlled material removal
• 3/8 inch straight shank for compatibility with standard collet and end mill holder systems
• Bright uncoated finish suitable for use with most cutting fluids
• Compact 2-7/16 inch overall length reduces setup clearance requirements

Compatibility

Designed for use with standard 3/8 inch collet chucks and end mill holders on manual and CNC vertical milling machines.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholding procedures. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter. Seat the shank fully into the collet or holder and torque the retention hardware per the toolholder manufacturer specifications. Verify runout with a dial indicator before cutting to avoid premature edge wear or workpiece dimensional error.
