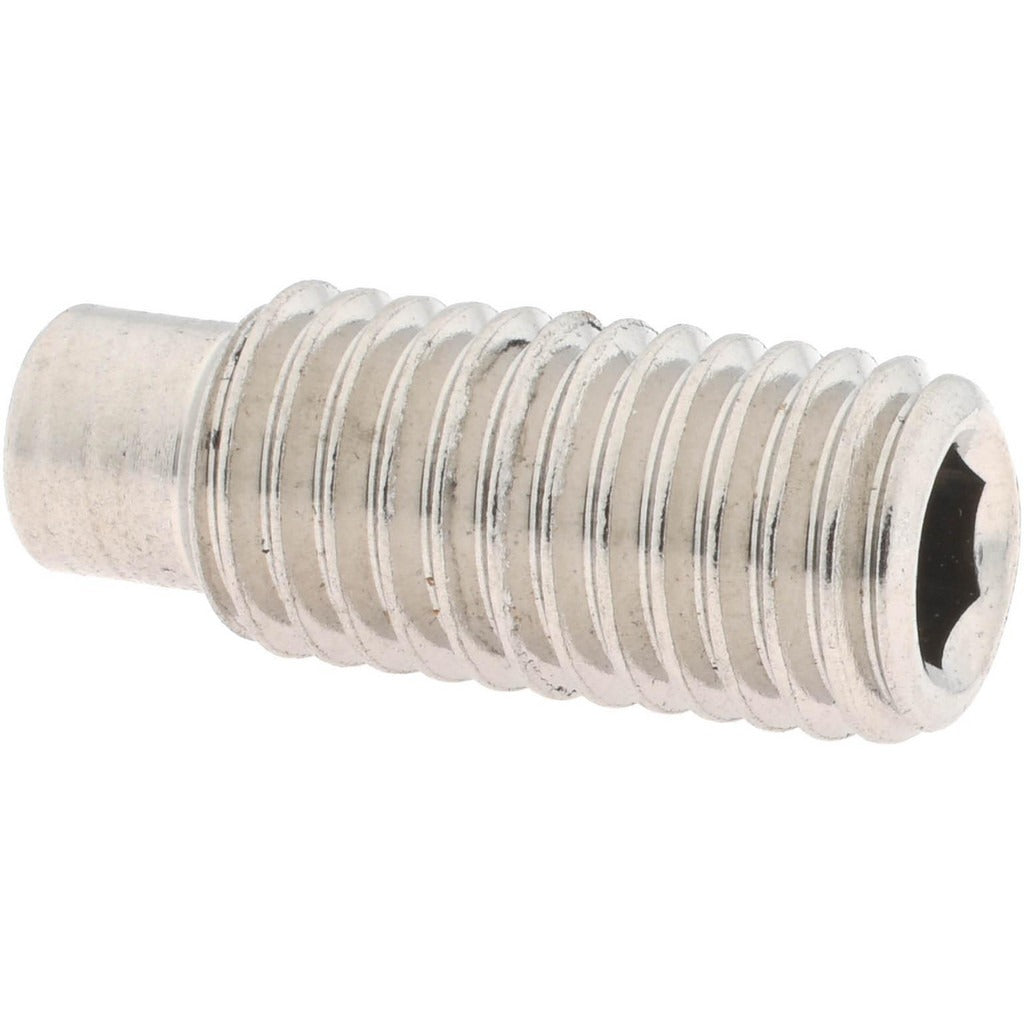

Value Collection SS5X12030-025BX Set Screw M12 X 1.75

Product Description

The VALUE COLLECTION SS5X12030-025BX is an M12 x 1.75 x 30 mm dog point set screw manufactured from 18-8 austenitic stainless steel to Grade A2 and conforming to DIN 915. The dog point extends beyond the thread to locate into a mating hole or groove, preventing axial and rotational movement without damaging the mating surface. Drive is a 6 mm internal hex, compatible with standard hex keys and drivers. Plain finish leaves the natural stainless surface exposed, relying on the alloy itself for corrosion resistance. This fastener is used in light-to-medium mechanical assemblies where secure positioning of a shaft, collar, or component on a mating part is required.

Dog point set screws of this size are common in industrial machinery, drive shafts, shaft collars, pulleys, couplings, and fixture work where metric fasteners are specified. The M12 x 1.75 thread is a standard coarse metric pitch. Overall length is 30 mm. Applications span general manufacturing, maintenance and repair operations, and OEM assembly lines. This part is sold individually but requires a minimum order quantity of 5 units per transaction.

Key Features

• Dog point tip locates into a matching bore for precise and secure shaft positioning
• 18-8 austenitic stainless steel, Grade A2, provides solid corrosion resistance in most industrial environments
• 6 mm hex drive accepts standard metric hex keys and T-handle drivers
• DIN 915 standard ensures dimensional interchangeability with other DIN 915 compliant fasteners
• Plain finish with no added coating or plating
• Overall length 30 mm, thread pitch 1.75 mm coarse

Compatibility

Designed as an OEM-style replacement or service fastener for any application requiring a DIN 915 dog point set screw with an M12 x 1.75 thread and 30 mm overall length.

Installation Notes

Installation is performed by a mechanic or maintenance technician using a 6 mm hex key. De-energize and lock out any rotating equipment before installing or removing set screws in drive components. Ensure the mating dog point bore is clean and properly sized to accept the point diameter before threading the screw in. Do not overtighten, as stainless fasteners are susceptible to galling; applying an appropriate anti-seize compound to the threads before installation reduces this risk.
