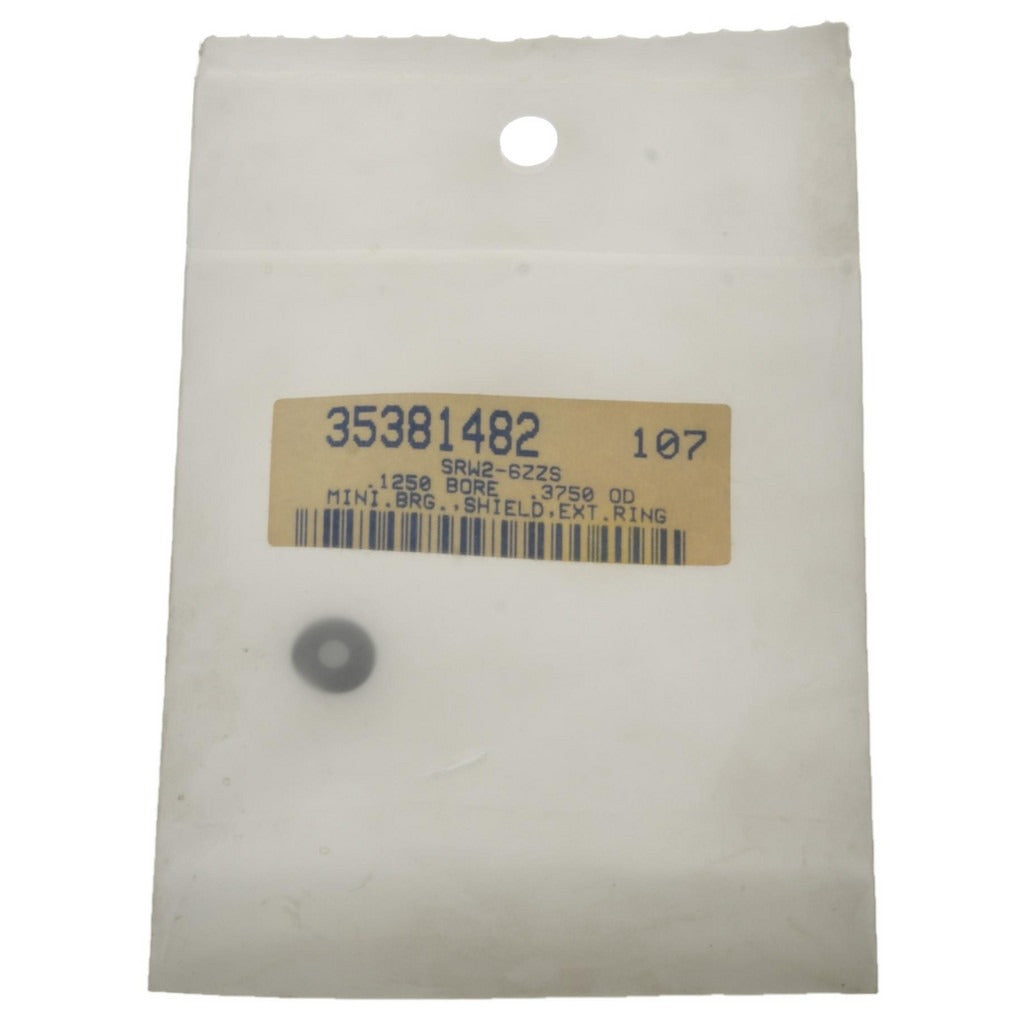

Value Collection SRW2-6ZZS Miniature Ball Bearing

Product Description

The VALUE COLLECTION SRW2-6ZZS is a single-row miniature ball bearing designed for applications requiring a compact, precision-grade rolling element in a small envelope. It features a 0.125 inch bore diameter, a 0.375 inch outside diameter, and an overall width of 0.1406 inches. The bearing carries an ABEC-5 precision rating and is constructed with a stainless steel housing, making it suitable for environments where corrosion resistance is a factor. A double-shield design keeps lubrication in and contaminants out without adding significant width to the assembly. Static load capacity is 49 pounds and dynamic load capacity is 144 pounds.

This miniature ball bearing is used in light-load, high-precision mechanical assemblies across a range of industries including instrumentation, small motors, medical devices, and light industrial equipment. Its compact dimensions make it a common choice wherever shaft support is needed in a confined space. Licensed technicians and precision machine assemblers typically handle installation in production or field-repair contexts.

Key Features

• Single-row construction with a 0.125 inch bore and 0.375 inch outside diameter
• Double-shield design retains lubrication and resists contamination
• ABEC-5 precision rating for tight dimensional tolerances
• Stainless steel housing for corrosion resistance
• 49 pounds static load capacity and 144 pounds dynamic load capacity
• Round bore, non-flanged, no snap ring — straightforward press or slip fit installation

Compatibility

Designed as an OEM-style replacement or direct-fit miniature ball bearing for single-row applications requiring a 0.125 inch bore, 0.375 inch OD, and ABEC-5 tolerance class. Bearing number cross-reference: SRW2-6ZZ.

Installation Notes

Installation should be performed by qualified mechanical technicians familiar with precision bearing fits. Always de-energize and lock out the equipment before replacing a bearing. Use a proper bearing press or installation sleeve to apply force evenly to the bearing ring being seated — never strike the bearing directly with a hammer. Avoid contaminating the bearing during handling, as ABEC-5 tolerances are sensitive to debris.
