Value Collection SO2147-4 Axial Fan 20 Cfm 24V Dc

Product Description

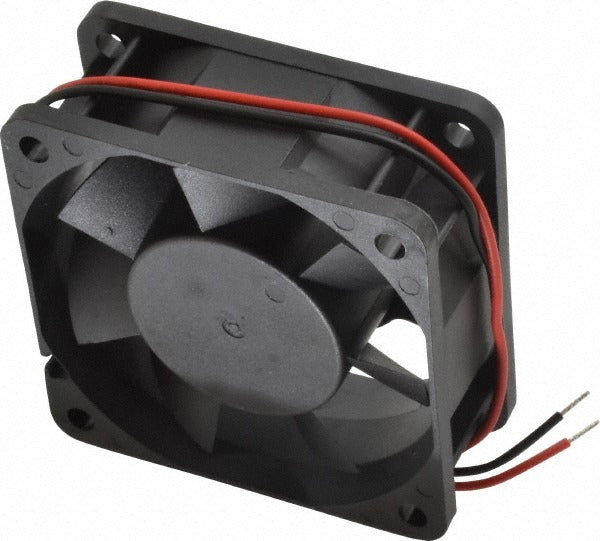

The VALUE COLLECTION SO2147-4 is a compact square tube axial fan designed for DC-powered ventilation and cooling applications in electronic enclosures, HVAC equipment, and light industrial systems. Running on 24 volts DC, this fan delivers 20 CFM of airflow while drawing only 0.120 amps, making it an efficient choice for low-power installations. The ball bearing construction supports the operating speed range of 3,500 to 3,800 RPM, providing reliable, continuous-duty performance with extended service life. The compact form factor fits tight spaces where reliable airflow is required without significant power draw.

This fan is suited for residential and light commercial applications where 24-volt DC power is available, including control panel cooling, electronic component enclosures, HVAC auxiliary ventilation, and OEM equipment integration. Its square tube housing simplifies panel mounting and makes it a practical replacement or retrofit option for similarly sized DC axial fans in existing equipment. Installation is straightforward for HVAC technicians and electronics maintenance professionals familiar with low-voltage DC systems.

Key Features

• 24-volt DC operation at 0.120 amps for low-power consumption
• 20 CFM airflow output suitable for enclosure and component cooling
• 3,500 to 3,800 RPM operating speed range
• Ball bearing design for extended service life and reliable continuous-duty use
• Square tube housing measures 2.36 inches high x 2.36 inches wide x 1 inch deep for easy panel mounting

Compatibility

Designed as a direct-fit replacement or retrofit option for 24-volt DC square tube axial fans with a 2.36 x 2.36-inch frame in HVAC control panels, electronic enclosures, and light industrial equipment.

Installation Notes

Installation should be performed by a qualified HVAC technician or electronics maintenance professional. De-energize and verify the absence of voltage on all DC power circuits before beginning work, following applicable NFPA 70 (NEC) low-voltage safety procedures. Ensure the mounting surface and fan orientation align with required airflow direction before securing the unit. Do not operate the fan outside its rated voltage range, as this may damage the motor or reduce bearing life.
