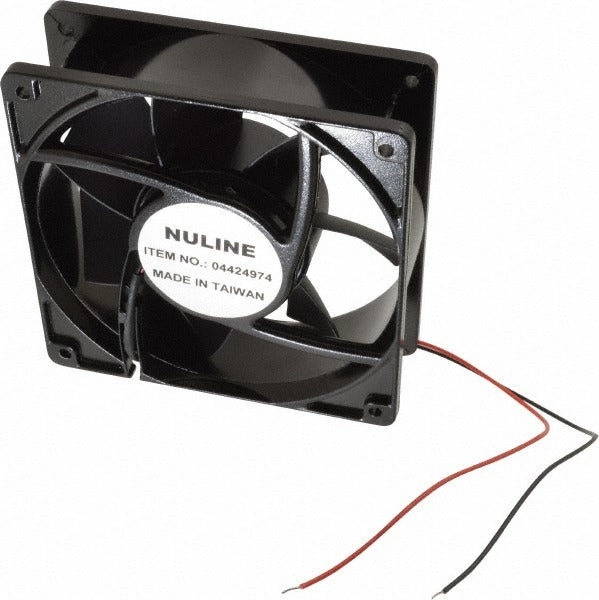

Value Collection SO2147-18 Axial Fan 145 Cfm 12V Dc

Product Description

The VALUE COLLECTION SO2147-18 is a 12-volt DC axial fan rated at 145 CFM, designed for forced-air cooling in electronic enclosures, control panels, and light industrial equipment. The square tube frame mounts flush into standard cutouts and keeps airflow straight and consistent across the fan plane. A ball bearing design supports the motor at speeds between 2600 and 2900 RPM, reducing wear compared to sleeve-bearing alternatives and extending service life in continuous-duty applications. Draw is 1.1 amps at 12 volts DC. Electricians, OEM technicians, and controls installers are the typical trades handling this unit.

This fan fits residential and light commercial control panel applications where a compact, low-voltage DC axial fan is needed for component cooling. The 4.7-inch square frame suits standard fan cutout positions in enclosures, VFD cabinets, and equipment housings. The 1.5-inch depth keeps the unit shallow enough for tight-clearance installations. No AC power source is required — the 12-volt DC input suits battery-backed systems, transformer-supplied panels, and low-voltage control circuits.

Key Features

• 145 CFM airflow rating for effective heat removal in enclosed panels
• 12-volt DC operation — compatible with low-voltage control circuits and battery-backed systems
• Ball bearing motor construction for extended service life in continuous-duty use
• Speed range of 2600 to 2900 RPM for consistent, reliable airflow
• Square tube frame at 4.7 inches x 4.7 inches fits standard enclosure cutouts
• Shallow 1.5-inch depth suited for tight-clearance panel installations

Compatibility

Designed as a direct-mount axial fan for 12-volt DC control panel and enclosure cooling applications requiring a 4.7-inch square frame footprint.

Installation Notes

De-energize the panel or enclosure and verify zero voltage before mounting or wiring this fan. A licensed electrician or qualified controls technician should perform installation in accordance with applicable NEC requirements for low-voltage DC circuits. Secure the fan frame using the mounting holes provided in the square tube housing and confirm airflow direction before final wiring. Do not exceed the rated 1.1-amp draw on the supply circuit.
