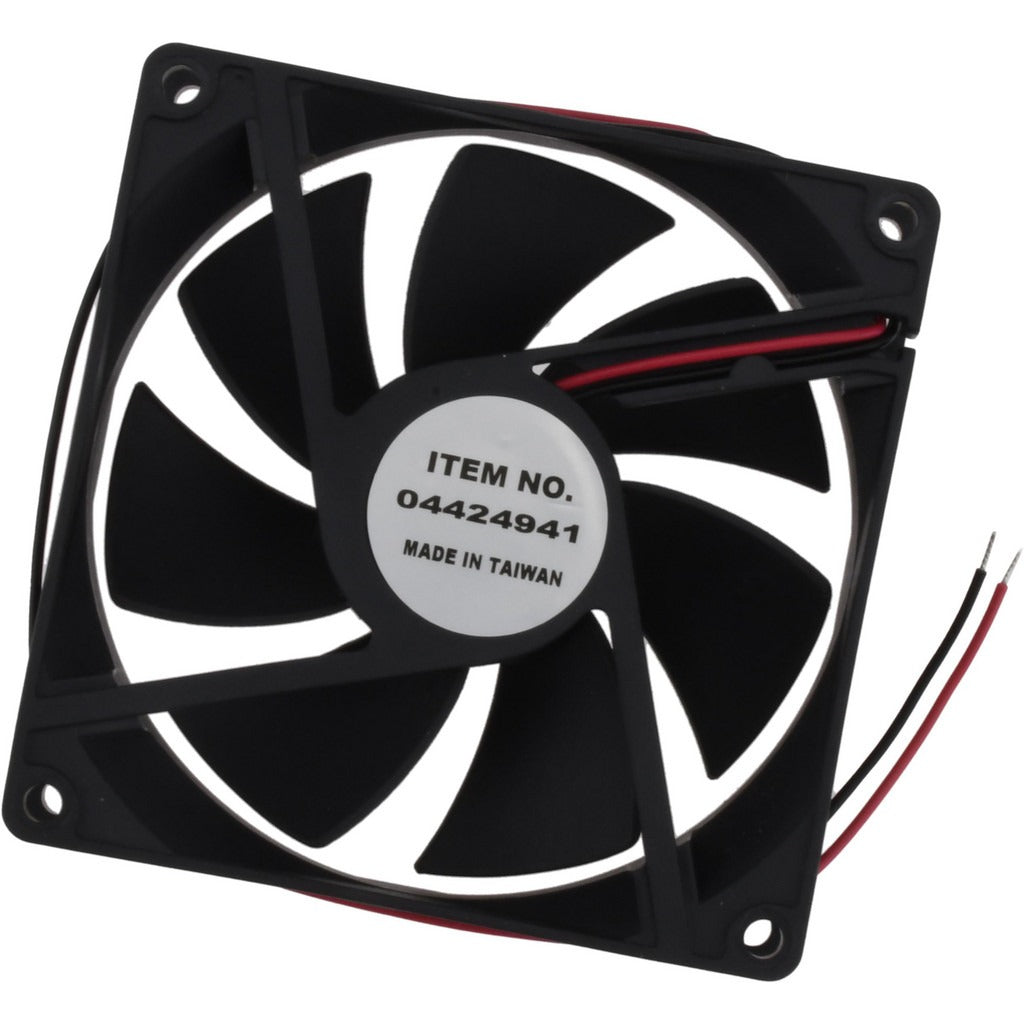

Value Collection SO2147-12 Axial Fan 24V 50.5 Cfm Dc

Product Description

The VALUE COLLECTION SO2147-12 is a square tube axial fan designed for DC-powered cooling and ventilation applications in equipment enclosures, control panels, and light industrial assemblies. Operating at 24 volts DC and drawing 0.140 amps, the fan moves 50.5 CFM of airflow at speeds ranging from 2,200 to 2,500 RPM. The ball bearing motor construction supports continuous-duty operation and extended service life compared to sleeve bearing alternatives. At 3.62 inches square and 1 inch deep, the compact frame fits standard square fan cutouts. HVAC technicians, electricians, and equipment service techs are the typical installers.

This fan is suited for residential and light commercial applications where low-voltage DC airflow is required in tight spaces. Common use cases include cooling electronics in control enclosures, supplemental ventilation in HVAC equipment, and OEM equipment replacement. The 24-volt DC input makes it compatible with low-voltage control circuits commonly found in HVAC and automation panels. The square tube housing allows straightforward inline or panel-mount installation without custom adapters.

Key Features

• 24-volt DC operation at 0.140 amps for low-voltage circuit compatibility
• 50.5 CFM airflow output suitable for component-level and enclosure cooling
• 2,200 to 2,500 RPM operating speed range
• Ball bearing motor for extended service life and continuous-duty use
• Square tube frame at 3.62 inches x 3.62 inches x 1 inch for standard panel cutout fitment
• Compact, lightweight design at 0.78 pounds

Compatibility

Designed as a replacement or upgrade axial fan for equipment requiring a 24-volt DC, 3.62-inch square tube fan in control panel, enclosure, or inline ventilation applications.

Installation Notes

Installation is typically performed by licensed electricians or qualified HVAC technicians. De-energize the equipment and verify zero voltage at the fan terminals before disconnecting or reconnecting leads. Confirm airflow direction against the housing label before mounting to ensure proper draw or exhaust orientation. Follow applicable NEC requirements for low-voltage DC wiring and enclosure work.
