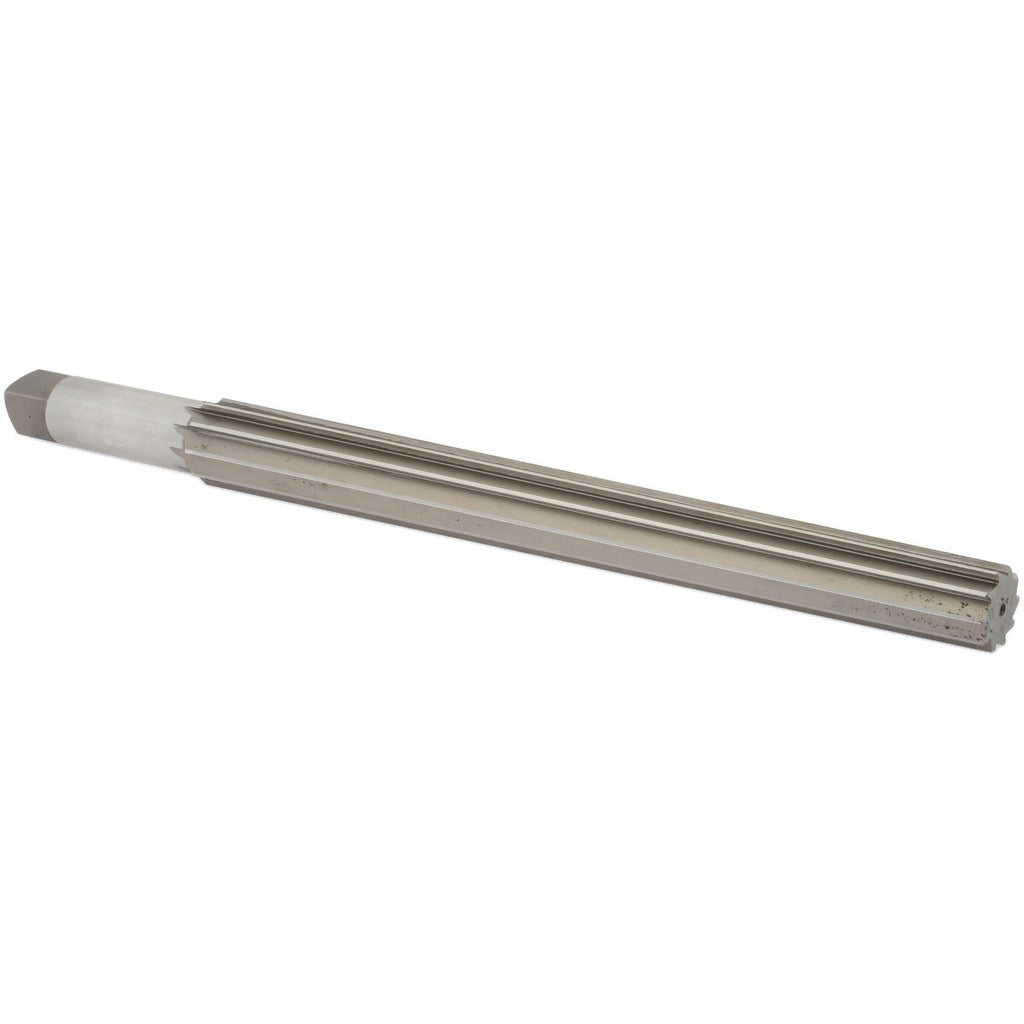

Value Collection SM24N13 Taper Pin Reamer Size 13 Hss

Product Description

The VALUE COLLECTION SM24N13 is a size 13 taper pin reamer designed for enlarging, finishing, and shaping tapered holes to precise tolerances. Built from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers reliable cutting performance in general-purpose machining applications. It features a small end diameter of 1.009 inches and a large end diameter of 1.259 inches, with a taper rate of 1:48 consistent with standard taper pin geometry. The 12-inch straight flute length and 16-inch overall length make it suitable for deep-reach applications. The 1.25-inch straight shank mounts directly in standard machine tool holders. Right-hand cutting direction matches conventional spindle rotation.

This reamer is used in machine shops, maintenance facilities, and manufacturing environments where taper pin holes must be cut or resized to accept standard size 13 taper pins. Typical applications include aligning shaft couplings, securing hubs to shafts, and fitting mechanical components that rely on taper pin fastening. It is suited for use in manual milling machines, drill presses, and CNC equipment with appropriate toolholding. General-purpose HSS construction handles a wide range of ferrous and non-ferrous workpiece materials at standard cutting speeds.

Key Features

• Size 13 taper pin geometry with a 1:48 taper rate for standard taper pin fitment
• High-speed steel construction for general-purpose performance across a range of materials
• Small end diameter of 1.009 inches and large end diameter of 1.259 inches
• 12-inch straight flute length provides extended cutting reach
• 16-inch overall length suits deep-hole and reach-critical setups
• Right-hand cut with bright/uncoated finish; straight shank for straightforward toolholder mounting

Compatibility

Designed as a general-purpose taper pin reamer compatible with standard size 13 taper pin hole applications in milling, drilling, and maintenance machining operations.

Installation Notes

This reamer should be installed and operated by qualified machinists familiar with reaming procedures and machine tool safety. Secure the workpiece and ensure the machine spindle is fully stopped before mounting or removing the tool. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Follow the machine tool manufacturer's recommended speeds and feeds for HSS reamers of this diameter range.
