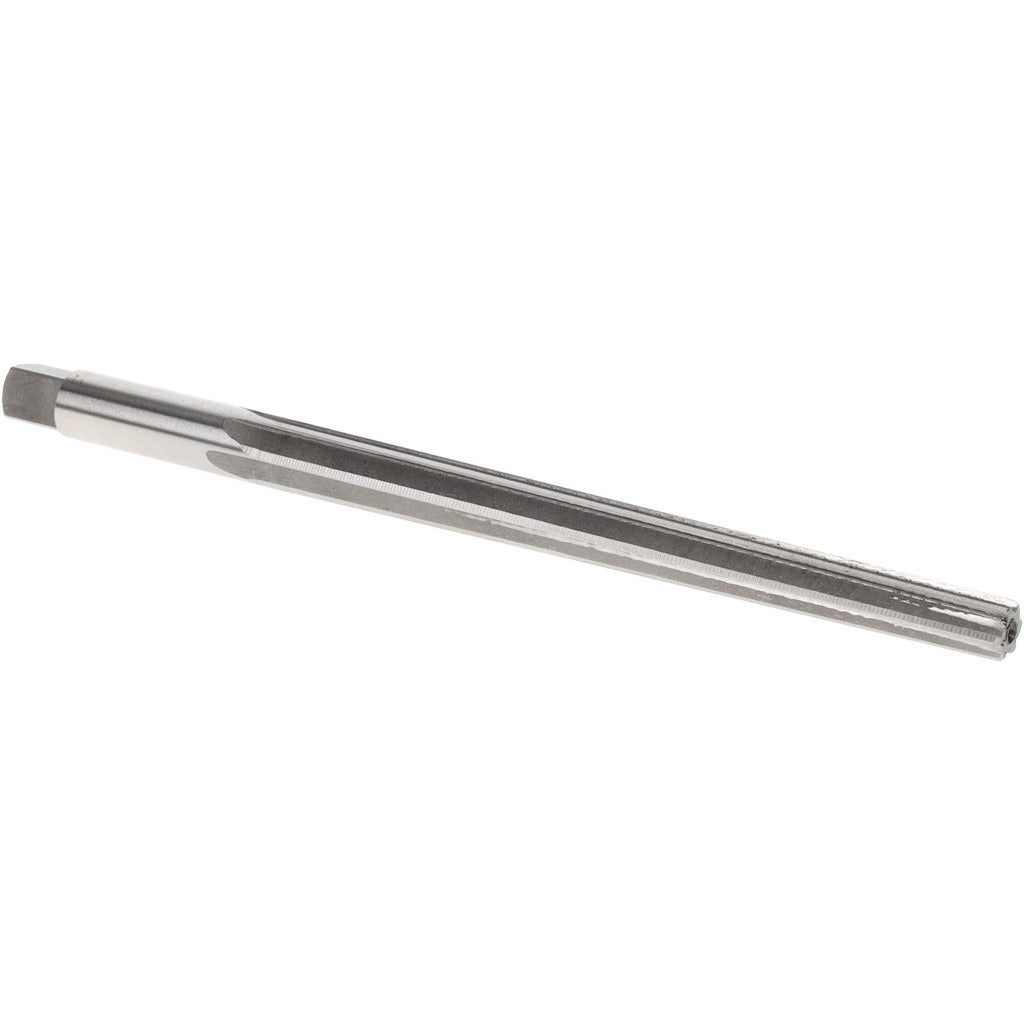

Value Collection SM24N06 Taper Pin Reamer Size 6 Hss

Product Description

The VALUE COLLECTION SM24N06 is a straight-flute taper pin reamer designed to enlarge, finish, and shape tapered holes to accept standard No. 6 taper pins. Machined from high-speed steel with a bright, uncoated finish, this tool delivers general-purpose performance in both production and maintenance settings. The small end diameter measures 0.2773 inches and the large end measures 0.354 inches, following a 1:48 taper rate. Overall length is 5.4375 inches with a flute length of 3.6875 inches. Machinists, tool-and-die technicians, and maintenance professionals use this reamer in manual or machine-driven applications where a precise taper pin fit is required.

This reamer is suited for use in machine shops, maintenance facilities, and fabrication environments wherever No. 6 taper pin holes need to be sized or cleaned up. Typical applications include fitting taper pins in shafts, collars, and mechanical assemblies that require a secure, removable connection. The right-hand cutting direction is compatible with standard drill press, milling machine, or hand-held driver setups running conventional rotation. It is a single-piece, general-purpose tool appropriate for ferrous and non-ferrous workpiece materials.

Key Features

• No. 6 taper pin size with a 1:48 taper rate for precise, repeatable hole sizing
• High-speed steel construction provides durability across general-purpose cutting tasks
• Straight flute geometry suited for standard hole finishing and taper pin fitting
• Bright, uncoated finish maintains dimensional accuracy without coating buildup
• Right-hand cut works with conventional rotation on drill presses and milling machines
• 23/64-inch straight shank (0.3594 inches) fits standard chucks and collets

Compatibility

Designed as a general-purpose replacement or stock reamer for standard No. 6 taper pin applications in machine shop, maintenance, and fabrication environments.

Installation Notes

This tool is intended for use by machinists and qualified maintenance technicians. Secure the workpiece firmly before reaming and ensure the reamer is properly centered in the existing hole. Apply cutting fluid to extend tool life and improve finish quality. Always rotate in the cutting direction only — reversing rotation under load can damage the flutes or the workpiece.
