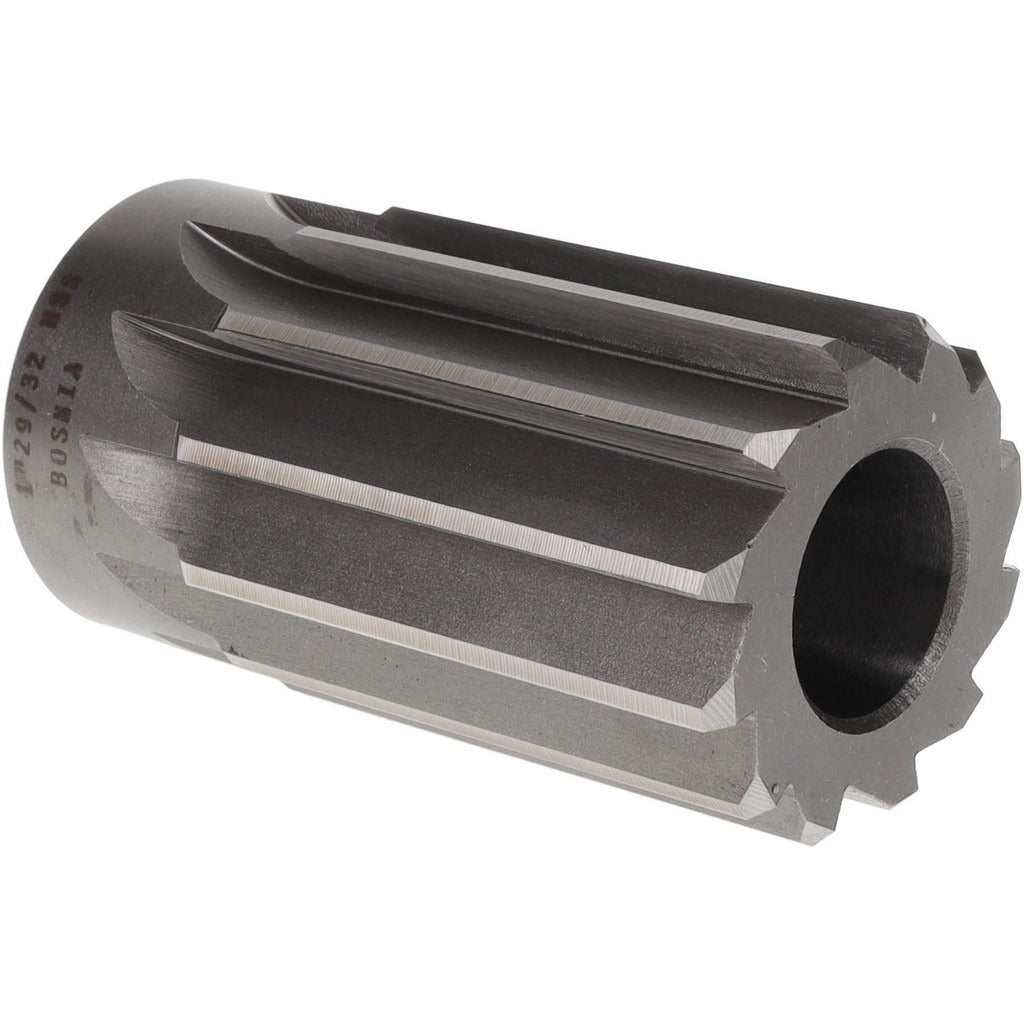

Value Collection SM2200158 Straight Shell Reamer 1-29/32 in

Product Description

The VALUE COLLECTION SM2200158 is a straight-flute shell reamer designed to finish-bore and size pre-machined holes to tight tolerances. It measures 1-29/32 inches (1.9062 inches decimal) in reamer diameter with a 3-1/2 inch overall length. The 1-inch center hole accepts a No. 8 arbor, and the right-hand cutting direction suits standard milling and drill-press setups. The body is machined from high-speed steel, providing the hardness and heat resistance needed for production reaming in steel, cast iron, aluminum, and similar materials. Machinists, toolmakers, and maintenance technicians use this tool where a solid-shank reamer would be impractical at larger diameters.

Shell reamers at this diameter range are common in job-shop machining, maintenance repair operations, and production environments where bore quality and dimensional accuracy matter. The arbor-mount design allows the cutting head to be swapped independently of the drive arbor, reducing tooling cost in facilities that ream multiple sizes. This reamer is suited for finishing operations on ferrous and non-ferrous workpieces where a final pass to 1.9062 inches is required.

Key Features

• 1-29/32 inch (1.9062 inch) reamer diameter for precise bore sizing
• Straight flute geometry provides stable cutting action and easy chip evacuation in through-holes
• High-speed steel construction resists heat buildup during extended reaming passes
• 1-inch center hole fits No. 8 arbor for secure, concentric drive
• Right-hand cut compatible with standard machine spindle rotation
• 3-1/2 inch overall length suits typical shell reamer arbor setups on milling machines and drill presses

Compatibility

Designed for use with a No. 8 reamer arbor featuring a 1-inch pilot. No specific machine model compatibility was provided by the manufacturer for this part.

Installation Notes

Shell reamers are installed and removed by a qualified machinist with the machine fully powered down and the spindle locked. The arbor must be properly seated and secured before operation to prevent runout that would compromise bore finish and diameter accuracy. Always apply an appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Inspect the cutting edges before each use and remove any burrs or built-up edge before mounting.
