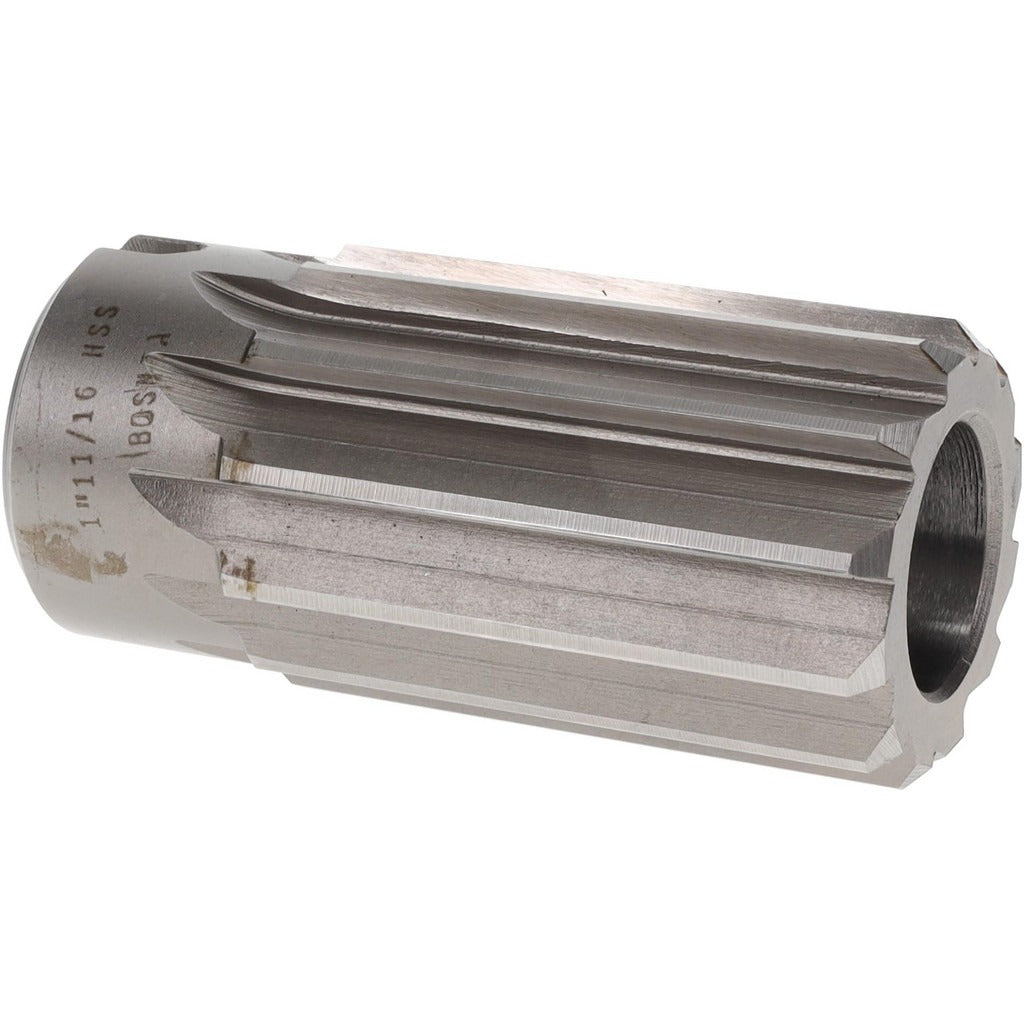

Value Collection SM2200144 Straight Shell Reamer 1-11/16 in

Product Description

The VALUE COLLECTION SM2200144 is a straight flute shell reamer designed for precision hole finishing in metal machining applications. Built from high-speed steel, this reamer produces accurate, smooth bores to a finished diameter of 1-11/16 inches (1.6875 inches decimal) with an overall length of 3-1/2 inches. The right-hand cutting direction is standard for conventional machine tool spindle rotation. Shell reamers of this type are mounted on an arbor rather than having an integral shank, making them well suited for production environments where arbor interchangeability is a priority. Machinists, tool and die makers, and maintenance technicians use this style of reamer to bring pre-drilled or bored holes to final size and finish.

This shell reamer is appropriate for use on drill presses, milling machines, and lathes in general metalworking, maintenance, and repair operations. The arbor-mount design with a 1-inch center hole accepts a No. 8 arbor, which is the standard arbor number for shell reamers in this diameter range. Typical applications include finishing holes in steel, cast iron, and similar ferrous materials where close tolerances and good surface finish are required.

Key Features

• 1-11/16 inch (1.6875 inch) finished reamer diameter for precise hole sizing
• High-speed steel construction provides hardness and wear resistance for ferrous metal cutting
• Straight flute design suits most standard reaming operations in through-holes
• Right-hand cut for use with conventional forward-rotating spindles
• No. 8 arbor compatibility with 1-inch center hole for secure, repeatable mounting
• Shell reamer style allows arbor reuse across multiple reamer sizes

Compatibility

Designed for use with No. 8 shell reamer arbors. Fits standard arbor-mount tooling setups on drill presses, milling machines, and lathes. Verify arbor taper and drive lug engagement before installation.

Installation Notes

Installation and use of this tool should be performed by qualified machinists or maintenance technicians familiar with rotating cutting tool safety. Secure the shell reamer firmly onto a compatible No. 8 arbor before mounting in the machine spindle. Always power down and lock out the machine before mounting or removing the reamer. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish.
